Particular Samples Measurements

We provide consultation for measuring samples that are difficult to grip with standard attachments, such as slippery, deformable, or distorted shapes.

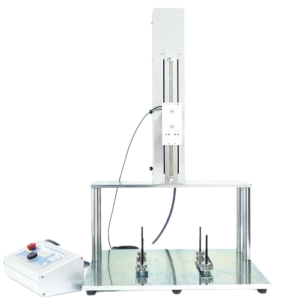

Test Stand With Large Table

Inquiry No.1T070

The Customized Motorized Test Stand is designed to accommodate substantial sample sizes with its large testing table. The stand’s height and position can be easily adjusted using bolts, providing flexibility for testing samples of varying sizes.

Peel Test Fixture for Solar Cell Ribbon

Inquiry No.1T067

The Peel Test Fixture for Solar Cell Ribbon is a versatile and indispensable tool that assesses the strength of adhesion. Its design includes fixed and adjustable peeling angle options, making it suitable for diverse testing requirements. This user-friendly fixture plays a pivotal role in ensuring solar cell connection quality control.

Peel Test Fixture for Crimped Postcard

Inquiry No.1T028

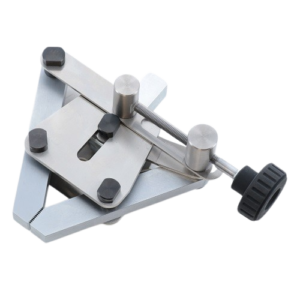

Pantograph Grip with Pressurization Mechanism

IMADA’s Pantograph Grip, featuring a Pressurization Mechanism, offers superior gripping capabilities that enhance its precision and adaptability in material testing. The custom-designed grip is ideal for secure handling of slippery samples such as metal plates.

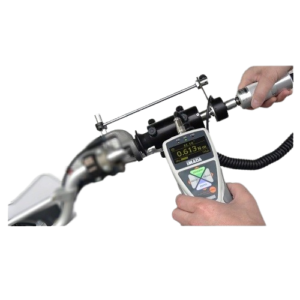

Motorcycle Accelerator Torque Test Fixture

Inquiry No.1T035

The Motorcycle Accelerator Torque Test Fixture is a precision instrument created to provide accurate testing of motorcycle accelerator torque. It is skilfully engineered to securely attach to hand grips, ensuring stable torque measurements.

L-shaped Sample Fixture

Inquiry No.1T076

The Customized Fixture for L-shaped sample tension testing is meticulously crafted to accommodate busbars and comparable samples. Its dual fixing plates can hold two distinct sample types simultaneously, making it highly versatile.

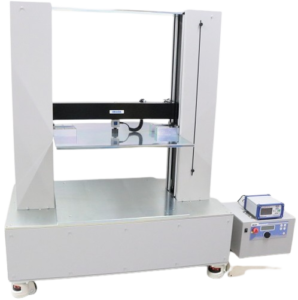

High capacity dual-column motorized test machine for compression test

Inquiry No.1T066

The High-Capacity Dual-Column Motorized Test Machine, designed for compression testing of large samples, including corrugated cardboard boxes. This durable machine boasts a maximum force of 5000N, providing an extensive testing capability for up to 999 hours and 59 minutes.

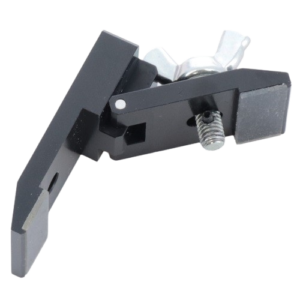

Film Grip with Openable Gripping Part

Inquiry No.1T053

IMADA’s custom-made Film Grip is the solution to achieving precision when handling exceedingly thin and soft samples. The gripping part of this innovative design is openable, making the specimen setup and cleaning process a breeze.

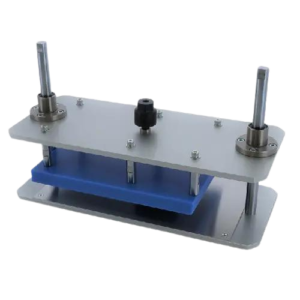

Compression Test Attachment for Squeeze Tube

Inquiry No.1T086

The Compression Test Attachment for Squeeze Tube, a modified version of the standard PR series, is specifically engineered for durability testing. Its distinctive features include a resin compression plate, which enables testing without removing the tube cap, reducing the risk of rust.

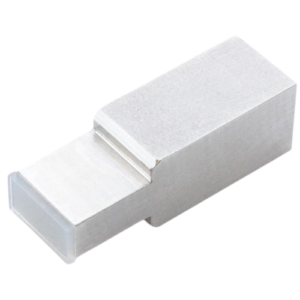

Compression Test Attachment for LCD Panel

Inquiry No.1T073

The Compression Test Attachment for LCD Panel is an exclusive device that features a urethane contact surface, thereby minimizing the probability of sample damage.

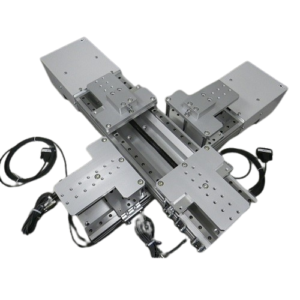

Biaxial Tension Tester

Inquiry No.1T020

The Biaxial Tension Tester is a sophisticated device that enables meticulous analysis and accurate measurement of force in samples undergoing biaxial tension, where forces are applied in two different directions.

Attachments to measure forces to open flat pack carton

Inquiry No.1T059

The Attachment is a specialized tool intended to measure the opening force required for flat pack cartons utilizing a carton former. This versatile set, when paired with a compatible test stand and force gauge, enables various measurements on corrugated cardboard by merely modifying the attachment.

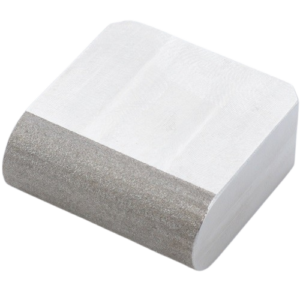

Attachments for break strength testing of lipsticks or lip balms

Inquiry No.1T064

The Break Strength Testing Attachments is meticulously crafted to cater to lipsticks and lip balm products. Our set comprises a fixture that accommodates versatile vertical stands, compatible with FRTS stick holder.

Attachments for 90 degree score bend test

Inquiry No.1T057

The Attachments for 90-Degree Score Bend Test are designed with precision to measure the compression value necessary for bending corrugated cardboard precisely at its score to a 90-degree angle.

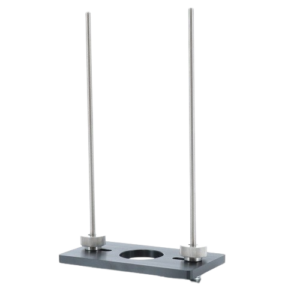

Attachment for Wine Cork Extraction Test

Inquiry No.1T051

Introducing IMADA’s Attachment for Wine Cork Extraction Test, a bespoke tool engineered with precision in mind. Its adaptable fixing height accommodates wine bottles of varying sizes, providing exceptional versatility.

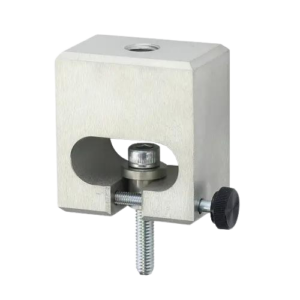

Attachment for Welded Nut Tension Test

Inquiry No.1T088

The Welded Nut Tension Test Attachment is specifically designed for assessing the durability of welded nuts on iron plates. With its customized adapter, it can accommodate an array of nuts with varying screw diameters, making it a versatile tool.

Attachment for Tube Tension Strength Test

Inquiry No.1T089

The Attachment for Tube Tension Strength Test is specifically designed for evaluating the tension strength of various tubes, even those that closely resemble artificial blood vessels.

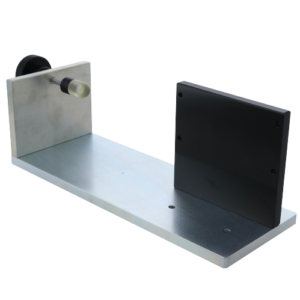

Attachment for Squeezing Force Test of Eye Drop Bottles

Inquiry No.1T083

The Customized Attachment for eye drop bottles is designed to perform a squeezing force test by utilizing specialized urethane-made parts, which simulate the feel of bottle squeezing.

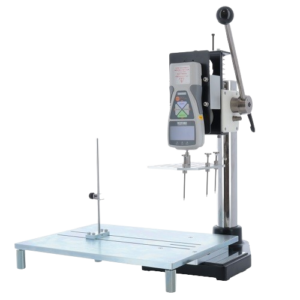

Attachment for OpeningClosing Force Test of Takeout Container Lid

The Customized Attachment designed for conducting opening/closing force tests on takeout container lids is a versatile and time-efficient tool. It can be adjusted to accommodate containers of varying sizes, allowing for swift and straightforward fixation of samples.

Attachment for Hard-to-Grip Samples

Inquiry No.1T090

The Attachment for Hard-to-Grip Samples is an ideal tool for tension testing of short or fragile samples that present difficulties when clamped with a chuck. The device measures tension strength by pulling apart left and right plates, which secure the sample’s ends using adhesive.

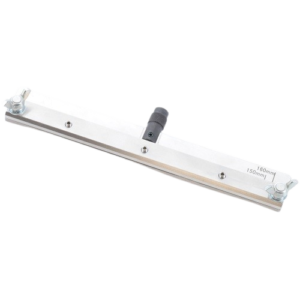

Attachment for Fixing Wide and Thin Materials

Inquiry No.1T050

The custom-made Attachment for Fixing Wide and Thin Materials is expertly crafted to ensure a secure grip on blades and other materials that are wide and thin, facilitating accurate and stable force measurements.

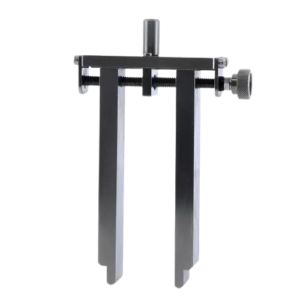

Attachment for Compression Test of Nasal Spray

Inquiry No.1T092

The Nasal Spray Compression Test Attachment is specifically designed to evaluate the compression strength of nasal spray devices. The attachment utilizes left and right bars to hold the spray in place while pressing down on the nozzle, mimicking real-world usage.
