SKKL-FD

Product Name

LED Illuminated Magnifier

Model

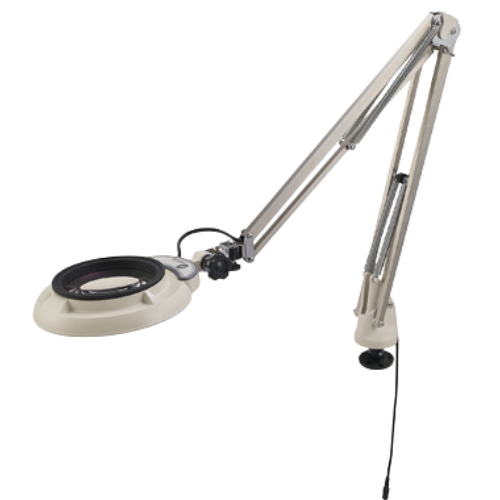

SKKL-FD (Fixed-type desk holder / free arm-type illuminated magnifier)

Product Description

The SKKL-FD model offers high visibility and flexibility without interfering with the workspace.

This free-arm magnifier uses a newly designed slim LED head equipped with board-mounted LEDs featuring a high color rendering index (CRI ≥ 90). This ensures natural color clarity and low heat output, making it ideal for precision work under continuous lighting.

The head includes a diffuser and glare protector, which reduce light reflections and strain on the eyes.

Key Features

Flange-mounted LED magnifier with adjustable free arm
Fixed-base design for secure attachment to workbenches and walls
High CRI (≥ 90) LEDs for precision color clarity
Swing arm and horizontal head rotation for easy positioning
Glare-reducing diffuser for eye comfort during long tasks

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V: 50/60 Hz: Plug Type A *Change or purchase an additional AC cord to use at 125-240V.
Power consumption	7W
Dimming Function	Not available
Body
Weight (Kg)	1.9kg (Without lens and AC adapter/body weight)
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃ ～ 35℃
Dustproof and waterproof protection grade	IP30 (indoor use only)
