SKKL-F

Product Name

LED Illuminated Magnifier

Model

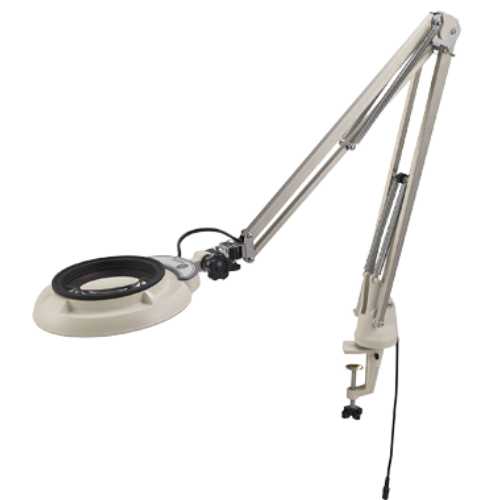

SKKL-F (Free-arm illuminated magnifier)

Product Description

The SKKL-F LED Magnifier is a premium clamp-on swing-arm magnifying lamp, ideal for professionals seeking flexibility, clarity, and hands-free magnification.

Featuring a sleek LED-exclusive head, this magnifier uses board-mounted high CRI LEDs (Ra ≥ 90) that provide natural color accuracy while reducing heat build-up. The anti-glare diffuser and lens protector offer consistent brightness and reduce eye strain, even during extended use.

Key Features

Clamp-mount swing arm LED magnifier for desks and workbenches
Flexible arm with wide horizontal head movement
High color rendering LED (Ra ≥ 90) for accurate inspection
Diffuser and glare reduction for eye comfort
Compact clamp design saves space and adds stability
Ideal for soldering, PCB repair, skin clinics, and craftsmanship

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V: 50/60 Hz: Plug Type A *Change or purchase an additional AC cord to use at 125-240V.
Power consumption	7W
Dimming Function	Not available
Body
Weight (Kg)	2.0kg (Without lens and AC adapter/body weight)
Possible clamping width (mm)	15〜60
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
