SKKL-CL

Product Name

LED Illuminated Magnifier

Model

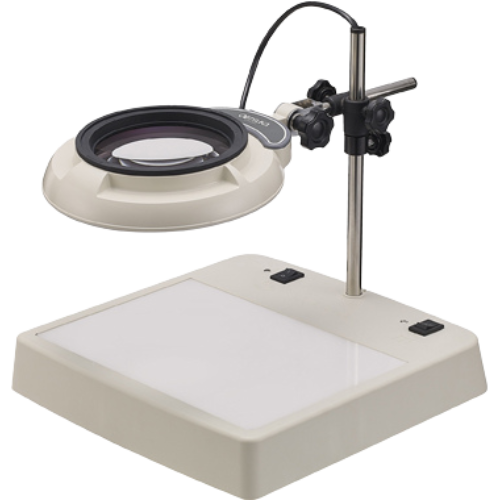

SKKL-CL (lightbox-type illuminated magnifier)

Product Description

The SKKL-CL model is a high-precision LED magnifying lamp with dual-lighting functionality — offering both epi-illumination (from above) and transillumination (from below) for advanced inspection needs.

Equipped with a new slim LED head, the SKKL-CL delivers uniform lighting with high color rendering (CRI ≥ 90), enabling true-to-color inspection and reduced heat buildup. The diffuser and protective cover minimize glare and reduce strain on the eyes.

Key Features

LED magnifier with lightbox and dual lighting (top + bottom)
High CRI LED lights (Ra ≥ 90) for accurate inspection
Epi-illumination for surface inspection
Transillumination for internal structure & translucent material analysis
Individual switches for flexible lighting control
Ideal for camera module checks, electronics, quality labs, and R&D

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	Epi-illumination side LED : High Color Quality White LED (CRI≧90) with Protective cover for diffusion. Transparent illumination side LED : White LED (CRI≧80) with Protective cover for diffusion.
Input voltage	100〜240V: 50/60 Hz: Plug Type A *It is possible to use up to 125〜240V by changing the cord with attached AC plug.
Power consumption	12W
Dimming Function	Not available/epi-illumination, transillumination can be turned on individually.

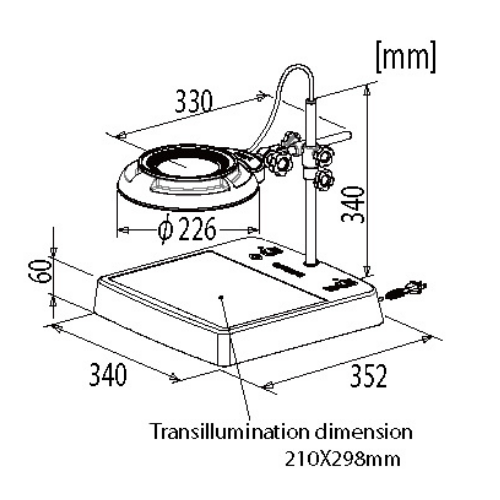

Body
Weight (Kg)	3.2 (without lens / body weight)
Vertical /Horizontal Bar (diameter/mm)	ɸ16/ɸ13
Operating temperature range	5℃ ~ 35℃
Dustproof and waterproof protection grade	IP30 (indoor use only)
