Wire Crimp Pull Test Attachments

Wire hardness testing is a critical quality control measure in the wire harness industry. At Imada, we specialize in wire crimp pull testers, which are essential tools for measuring the strength of wire crimps. When used in conjunction with an Imada force gauge and test stand, our wire crimp strength testers deliver optimal results.

Imada offers an extensive lineup of products designed to measure the crimp strength of various sizes and shapes of crimped terminals. Our range of wire clamp and terminal clamp jigs, rotary wire terminals, and terminal clamp jigs are all designed specifically for crimp pull testing.

By using the appropriate Imada wire crimp pull tester, you can ensure that your wire crimps meet the necessary strength requirements and that your products meet the highest quality standards.

Wire clam Jig: Imada’s CW series features two types of wire clamp jigs, the CW-500N and CW-5000N, which are specifically designed for use with wires and cables. The CW-500N is a wire clamp jig that can measure up to 500N and is ideal for wire crimp pull tests.

Featuring a single-touch operation and a self-tightening design, the CW-500N wire clamp jig is both efficient and user-friendly. Its ease of use makes it a popular choice for measuring the strength of wire crimps, and its compact design ensures that it can be easily integrated into any workspace.

CW-5000N is a wire clam jig for 5000N capacity. It has a screw fixing base which helps with a firm grip of wires and cables. Ideal choice for high capacity wire crimp pull test.

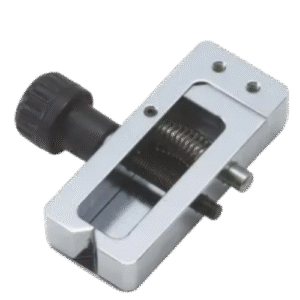

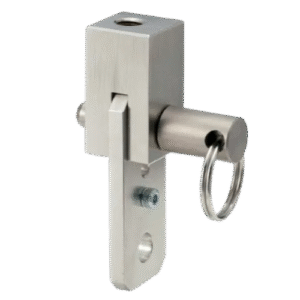

Wire Terminal Clamp Jig: Imada offers 500N and 5000N for wire terminal clamp jigs. It is combined with Imada wire clam jigs for wire crimp pull test. CH-500N is easy to use and has knob features to open the jaws and hook the wires and cables. CH-5000N is used for high capacity wire crimp pull tests.

Rotary Wire Terminal Fixture:  Imada’s rotary wire terminal fixture is a wheel-type fixture with a capacity of 1000N, making it an excellent option for testing the tensile strength of crimped terminals. This fixture is specifically designed to be user-friendly, with an easy-to-use design that involves simply hooking the sample onto the fixture.

The rotary design of this fixture allows for easy testing of samples with different sizes, and its compatibility with Imada force gauges and test stands ensures optimal accuracy and precision in your measurements. This fixture is an essential tool for any wire harness industry, providing reliable and efficient results with each use.
