The peel test fixture is a valuable attachment used to measure the peel force or adhesive strength of a product. When paired with an Imada force gauge and test stand, it creates the most effective desktop peel tester.

Imada understands the diverse needs of the tape and film industry when it comes to checking adhesive strength. To meet these demands, we offer a wide variety of peel tester attachments.

Our peel test fixtures come in 45-degree, 90-degree, and 180-degree configurations. However, many customers require customized attachments to test all of these peel angles, and Imada is happy to provide such bespoke solutions to meet their specific requirements.

Download peel attachment p180-200n Catalog

Download Peel Attachment p90200n Catalog

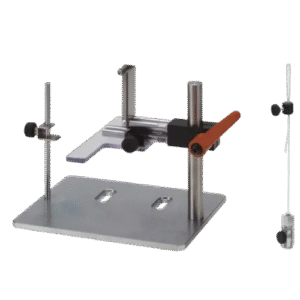

45 Degree Peel Test Fixture

P45-50N

The P45-50N is a 45-degree peel test fixture with a 50 N capacity, designed for peel testing of packaging films. It is especially suitable for applications in the food and medical industries.

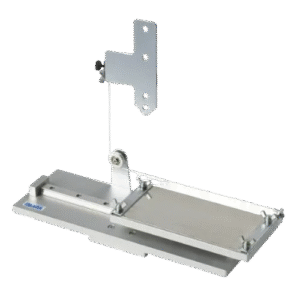

90 Degree Peel Test Fixture

P90-200N

The P90-200N is a 90-degree peel test fixture with a 200 N capacity, ideal for testing adhesives such as tapes, glues, and stickers.

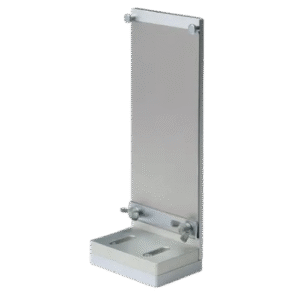

180 Degree Peel Test Fixture

P180-200N

P180-200N is a 180-degree peel test fixture with a 200N capacity, designed for peel testing of adhesives such as tapes, glue, and stickers.

Coating Surface Peel Test Fixture

TH series

TH series is a coating surface peel test fixture with a 5000N capacity. It evaluates the adhesion strength of a coating by attaching a test dolly to the coated surface and pulling it off.

Sample Plate for Adhesive Tape Peel Test

ATP-50N

ATP-50N is a 50N-capacity jig designed for peel testing adhesive tapes. The sample can be easily fixed to the jig’s plate for straightforward peeling force measurement.
