ENVL -FL

Product Name

LED Illuminated Magnifier

Model

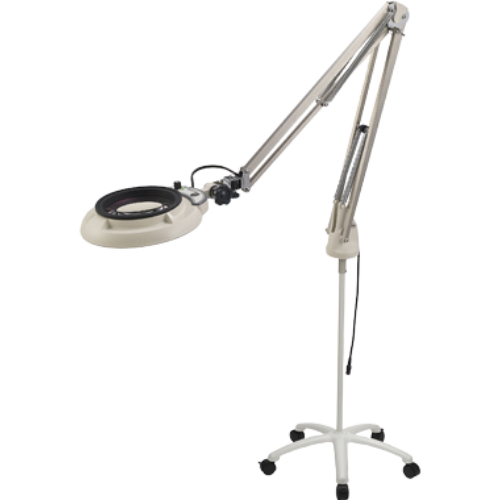

ENVL-FL (free-arm + illuminated magnifier with caster stand)

Product Description

The ENVL-FL is a swing-arm LED illuminated magnifier mounted on a caster stand, offering easy mobility across workspaces. Ideal for precision tasks, it features a slim LED head with board-mounted LEDs that offer high color rendering (Ra ≥ 90) and reduced heat. The flat diffuser and glare protector ensure even lighting without harsh reflections.

Designed for user convenience, the ENVL-FL model includes a light adjustment knob directly on the head, allowing brightness control from 100% to approximately 10%. Both the on/off switch and brightness knob are placed for easy access, improving operational control. The compact clamp attachment ensures stability and minimal workspace intrusion. The horizontally swinging head offers extended flexibility and reach.

Key Features

Swing-arm LED magnifier with caster stand for mobility
Board-mounted LED with high CRI (Ra ≥ 90)
Glare-free diffuser and lens protector
Light intensity adjustable from 100% to ~10%
On-head control switch and dimmer knob
Compact clamp attachment for enhanced stability
Horizontally swinging head for flexible positioning

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	12.1kg (Without lens and AC adapter/body weight)
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
