ENVL -SA

Product Name

LED Illuminated Magnifier

Model

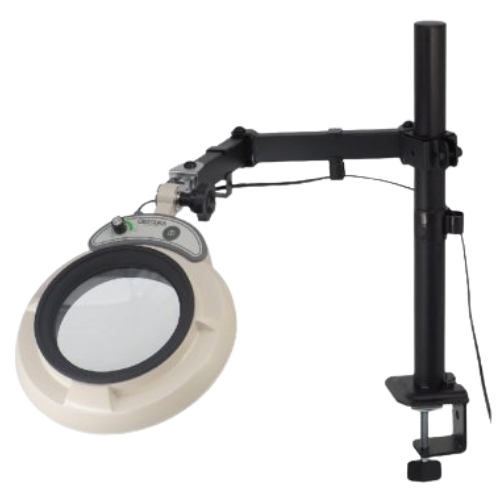

ENVL-SA Swing arm type (clamp mounted)

Product Description

The ENVL-SA model from the ENVL Series is a clamp-mounted LED illuminated magnifier designed for stable desk installation. Engineered to resist vibration, it ensures a secure and steady setup, even in demanding work environments. This model also doubles as a basic free-arm magnifier, offering functional flexibility.

Equipped with a newly designed slim LED-exclusive head, it features a board-mounted LED with high color rendering (CRI ≥ 90) and minimal heat generation. A flat diffuser and light protector help reduce direct glare and visual fatigue, making it ideal for precision work.

Key Features

The SA type is designed for secure desk mounting, offering stable installation and vibration resistance.
It also functions as a basic free arm.
Equipped with a specially designed slim LED head featuring a high color rendering board-mounted LED (Ra≧90) and low heat generation.
The flat diffuser and protector help minimize glare and reduce light strain during work.
A convenient knob allows light adjustment from 100% down to approximately 10%.
The on/off switch and brightness control knob are located on the head for easy operation.

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	2.2Kg（Body only）

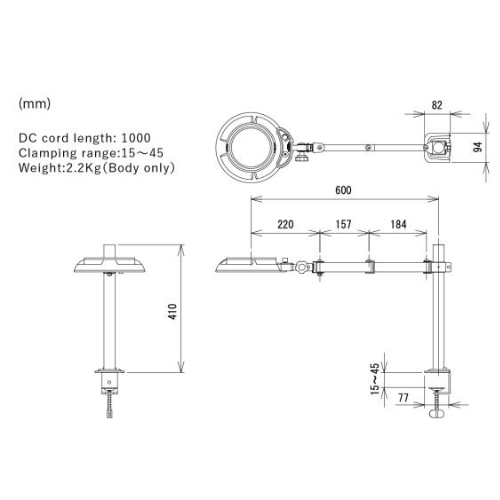

Pole Height(mm) / Arm length(mm)	410/380
Possible clamping width (mm)	15-45
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
