ENVL -FD

Product Name

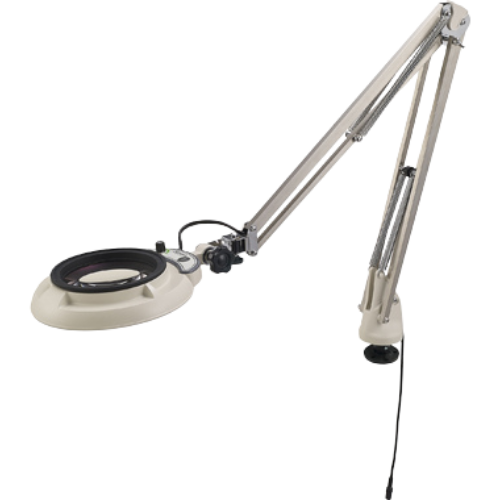

LED Illuminated Magnifier

Model

ENVL-FD (Fixed-type desk holder)

Product Description

The ENVL-FD model is a flange base, arm-type LED illuminated magnifier that can be securely fixed to a workbench using screws—ideal for surfaces where clamps aren’t feasible, such as when placed against a wall.

Its slim, LED-exclusive head is equipped with board-mounted LEDs featuring high color rendering (Ra ≥ 90) and controlled heat generation. A flat diffuser and protector minimize glare and deliver uniform light across your workspace.

The on/off switch and light adjustment knob are conveniently located on the head for enhanced usability. The light intensity is fully adjustable, from 100% to approximately 10%, ensuring suitable brightness for varied inspection tasks.

The newly designed clamp attachment enhances work efficiency while saving space.

Key Features

Flange base for screw-down installation on workbenches
LED head with high color rendering (Ra ≥ 90)
Diffuser and protector reduce LED glare
Adjustable brightness (10% to 100%) using knob
On/off switch and brightness control are placed on the head
Horizontal head swing for flexible positioning
Space-saving, reinforced clamp design

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details..
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	1.9kg (Without lens and AC adapter/body weight)
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
