ENVL -D

Product Name

LED Illuminated Magnifier

Model

ENVL-D (Fixed-type desk holder illuminated magnifier)

Product Description

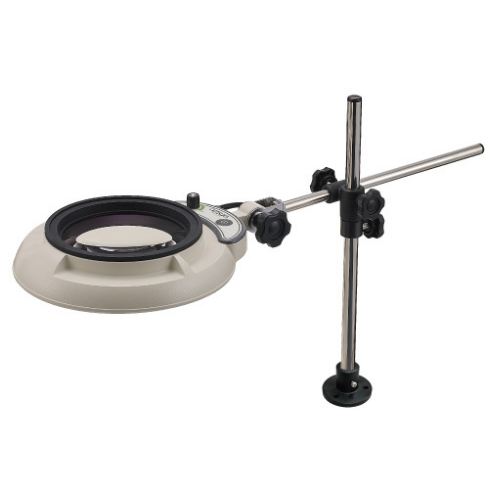

The ENVL-D is a flange-mounted LED illuminated magnifier designed for direct installation on workbenches using screws. Built for stability and precision, it features a newly designed slim head, exclusively for LED lighting, offering high color rendering (CRI ≥ 90) and efficient heat control.

The head is equipped with a flat diffuser and protective cover, minimizing LED glare and reducing visual strain. A knob-based light adjustment allows users to fine-tune the brightness from 100% to approximately 10%, making it ideal for various lighting needs.

For improved usability, the on/off switch and brightness control knob are integrated directly on the head, ensuring convenient access during detailed work.

Key Features

Flange base for secure screw-fixed installation on workbenches
LED-exclusive head with high color rendering (Ra ≥ 90)
Flat diffuser and glare protection for eye comfort
Adjustable brightness from 100% to ~10% with control knob
On-head switch and brightness control for easy operation

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	1.1kg (Without lens and AC adapter/body weight)
Vertical /Horizontal Bar (diameter/mm)	ɸ16/ɸ13
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
