ENVL -CL

Product Name

LED Illuminated Magnifier

Model

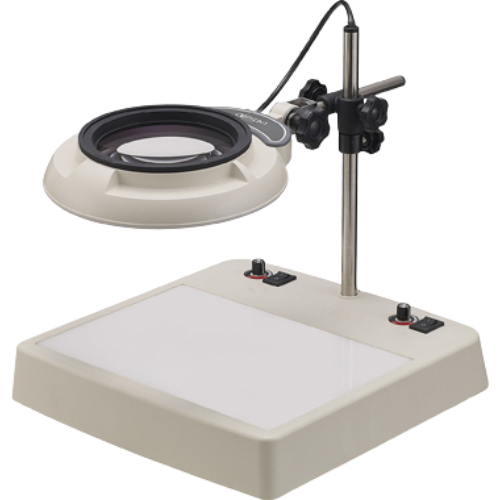

ENVL-CL (lightbox-type illuminated magnifier)

Product Description

The ENVL-CL model is a dual-light LED illuminated magnifier designed for precision inspection and analysis. It features two independent lighting options: epi-illumination around the lens for surface examination and transillumination from the base for checking internal or translucent components. Both lighting sources can be switched on/off independently for greater control.

The magnifier uses a newly designed LED-exclusive slim head, equipped with board-mounted LEDs that offer high color rendering (Ra ≥ 90) and efficient heat management. A flat diffuser and glare-reducing protector ensure smooth lighting distribution and minimize visual fatigue, especially during extended use.

Key Features

Dual light source: Epi-illumination & transillumination
Individually controlled light modes for inspection flexibility
High CRI LED light (Ra ≥ 90) for clear, true-color visibility
Diffuser and glare protector for reduced eye strain
Suitable for external surface and internal structure inspections

Lens
Magnifier Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	Epi-illumination side LED : High Color Quality White LED (CRI≧90) with Protective cover for diffusion. Transparent illumination side LED : White LED (CRI≧80) with Protective cover for diffusion.
Input voltage	100～240V : 50/60 Hz : Plug Type A * It is possible to use up to 125～240V by changing the cord with attached AC plug.For more information, please contact your dealer.
Power consumption	18W
Dimming Function	Available / 100 ～ 50% Each epi-illumination/transillumination can be turned on or adjusted individually.
Body
Weight (Kg)	3.2 (without lens / body weight)
Vertical /Horizontal Bar (diameter/mm)	ɸ16/ɸ13
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP30 (indoor use only)
