ENVL -CF

Product Name

LED Illuminated Magnifier

Model

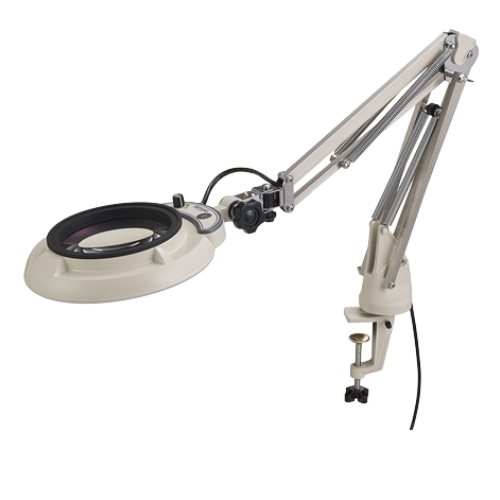

ENVL-CF type (Compact free-arm illuminated magnifier)

Product Description

The ENVL-CF model is a compact swing-arm LED magnifier that can be easily clamped to a desk for stable hands-free operation. It features a newly designed slim LED-exclusive head with a board-mounted LED offering high color rendering (Ra ≥ 90) and minimal heat generation—ideal for tasks requiring clarity and accuracy.

A flat diffuser and lens protector help reduce harsh glare and reflections commonly associated with LEDs, ensuring better visibility and comfort during prolonged use. The on/off switch and light adjustment knob are conveniently positioned on the head for direct and precise control. Brightness can be smoothly adjusted from 100% to approximately 10%, allowing for adaptable lighting based on your task.

Key Features

Compact swing-arm magnifier with desk clamp mount
High color rendering LED (Ra ≥ 90) for accurate lighting
Diffuser and glare protector for visual comfort
Brightness adjustable from 100% to approx. 10%
Light control knob and power switch located on the head
Horizontal head swing for optimal positioning
Reinforced space-saving clamp design

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	1.8kg (Without lens and AC adapter/body weight)
Possible clamping width(mm)	15～60
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
