ENVL -B

Product Name

LED Illuminated Magnifier

Model

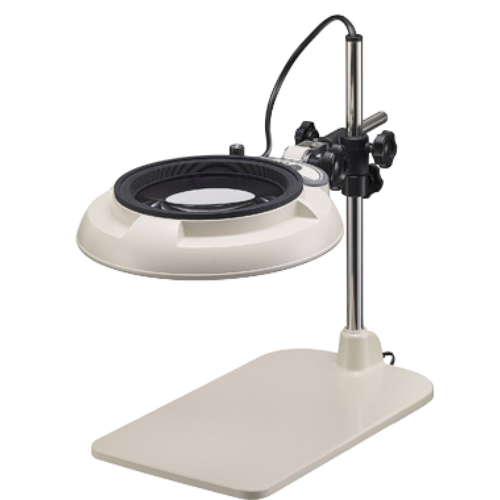

ENVL-B (Table Stand Type Illuminated Magnifier)

Product Description

The ENVL-B model is a self-supporting table stand LED magnifier, crafted for precision tasks that demand clarity and stability. It features a newly designed LED-exclusive slim head with board-mounted LEDs offering high color rendering (Ra ≥ 90) and efficient heat control.

A flat diffuser and protective cover minimize LED glare while providing uniform lighting. The adjustable brightness knob allows light intensity control from 100% down to approximately 10%, and both the on/off switch and dimmer are conveniently located on the head for easy access.

Key Features

Self-supporting table stand design for enhanced workspace comfort
LED-exclusive slim head with high CRI (Ra ≥ 90) and heat reduction
Flat diffuser and protector for glare-free illumination
Adjustable brightness from 100% to ~10% with a control knob
On/off switch and brightness knob mounted on the head for convenience
An optional conductive mat is available for a static-free, clean surface protection

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100〜240V : 50/60 Hz : Plug Type A *Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	1.9kg (Without lens and AC adapter/body weight)
Vertical /Horizontal Bar (diameter / mm)	Φ16/Φ13
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃〜35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
