Mechanical Force Gauge Push Pull Gauge

Mechanical force gauges, also known as mechanical push-pull force gauges, analog gauge are instruments used to measure the force applied to an object. They typically operate using a spring-loaded mechanism, with the force being applied to the object causing the spring to compress or extend. The amount of compression or extension is then measured using a dial or other visual indicator, and this value is used to determine the force applied. Mechanical force gauges are simple, easy to use, and relatively inexpensive, making them a popular choice for a wide range of applications. Imada offers various different types of Mechanical Force Gauges but also offers more widely used and popular Digital Force Gauges as well.

What Is Mechanical Force Gauge/ Mechanical Push Pull Force Gauge

A mechanical push pull gauge, also known as a mechanical force gauge or mechanical push pull scale, is a type of analog device that is used to measure the force of pushing and pulling. It consists of a spring mechanism and a dial or needle, which moves to indicate the amount of force being applied. Mechanical push pull gauges are commonly used in quality control and other testing applications, and are known for their ease of use, robust construction, and cost-effectiveness. They do not require a power source and can be easily stored and managed.

Standard Type Mechanical Force Gauges (Push Pull Gauges)

Standard type mechanical force gauges, also known as “push-pull gauges” or “push-pull scales,” are analog force measuring devices that use a spring mechanism to measure push and pull forces. These gauges are easy to read, as the transition of force is indicated by the movement of the needle.

FB/FS series

Economical Model Mechanical Force Gauge

The FB/FS series of economical model mechanical force gauges (also known as “push-pull gauges” or “push-pull scales”) are an analog force measuring device that uses a spring mechanism to measure push and pull forces. These gauges are easy to read, with a clear transition of force indicated by the movement of the needle.

PS/PSS series

Standard Model Mechanical Force Gauge

PS/ PSS Standard model mechanical force gauges, also known as “push-pull gauges,” are analog force measuring devices that use a spring mechanism to measure push and pull forces. Standard model mechanical force gauges are a low-cost and convenient choice for applications with limited usage.

PSM series

Precision Model Mechanical Force Gauge

PSM Precision model mechanical force gauges (also known as push-pull gauges or push-pull scales) are analog devices. These gauges are highly accurate, and feature a stop mechanism that stops the needle at the peak value, allowing them to support both compression and tension testingSpecial Type Mechanical Force Gauges (Push Pull Gauges)

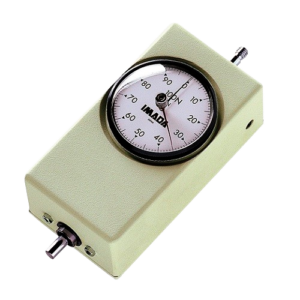

Special Type Mechanical Force Gauges (Push Pull Gauges)

The special type mechanical force gauge has a high capacity of 3000N and is designed to be easily integrated into a testing facility.

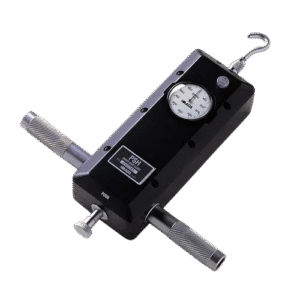

PSH series

High Capacity Model Mechanical Force Gauge

The PSH series is a special purpose mechanical force gauge from Imada. It has a capacity of 3000N and is designed for integration into a facility or for use in special environments. It is suitable for both compression and tension testing, and is equipped with a stop mechanism that stops the needle at the peak value.

Frequently Asked Questions

What is a push pull gauge?

A Push Pull Gauge is a handheld instrument used to measure both compression (push) &tension (pull) forces. It provides accurate readings for applications like product testing, material strength analysis, & assembly verification. Shraddha Impex offers reliable push-pull gauges designed for precise force measurements in industrial environments.

What are the different types of Push Pull Force Gauges?

Push-pull force gauges are categorized into two main types:

Mechanical Push Pull Gauges: Use analog dials & springs for readings. They are durable & do not require power, making them ideal for basic applications.
Digital Push Pull Gauges: Provide precise,digital display, often with additional features like data storage, peak force measurement, & compatibility with motorized test stands.

Shraddha Impex offers both mechanical & digital push-pull gauges, tailored for diverse industrial applications.

How do you use a Push Pull Gauge?

To use a push-pull gauge, follow these steps:

Zero the gauge: Ensure the gauge reads zero before use.
Attach the gauge: Secure the force gauge to the test item using the appropriate fixtures or attachments.
Apply force: Gradually apply force to the item in either a pulling or pushing direction.

Read the measurement: Observe the reading on the display (digital or analog) to determine the force applied.

What is a Push Pull force Gauge used for?

A Push Pull force gauge is used to measure the force required to either push or pull an object. Common applications include testing the strength of materials, measuring the force needed for product assembly, ensuring quality control in manufacturing, & conducting tensile & compression tests. Shraddha Impex offers reliable Push Pull Gauges for precise force measurements in industrial testing.
