Compression and Tension (Bi-directional) Load Cells

The compression and tension dual-purpose load cell is designed for versatile use in both compression and tension measurements. Available in various types, including rectangular models for easy equipment integration, pen-type for narrow spaces, and waterproof options for demanding environments.

Standard Load Cells

Standard load cells are general-purpose force sensors designed to measure compression, tension, or both, with high accuracy and reliability across common applications. They typically come in standard shapes (like S-type, beam, or button) and standard capacity ranges, making them suitable for routine testing, quality control, or integration into machines.

DPU series

Standard Type Load Cell

load cell, standard load cell

The standard-type load cell offers a 500N capacity and features a rectangular design for easy integration into external equipment. It includes a jig attached to the threaded measuring shaft for secure and precise measurements.

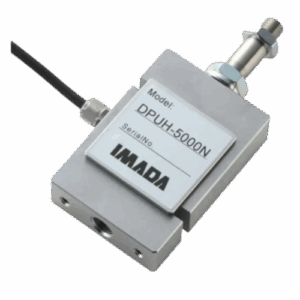

DPUH series

High Capacity Load Cell

The high-capacity load cell offers a range from 1000N to 20kN, suitable for both compression and tension testing. Its cuboid design with female threads ensures easy integration into external equipment.

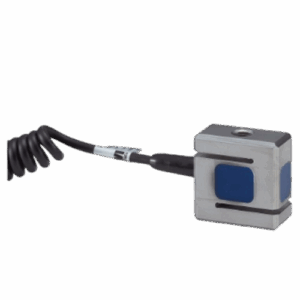

SW series

Waterproof and Dust-proof Load Cell

 This load cell is IP67-rated for waterproof and dustproof protection, with a capacity of 500N. Both ends are threaded, allowing easy attachment to equipment or connection to an eyebolt.

Extra Compact Load Cells.

Extra Compact Load Cells are ultra-small force sensors designed for limited-space installations without compromising measurement accuracy.

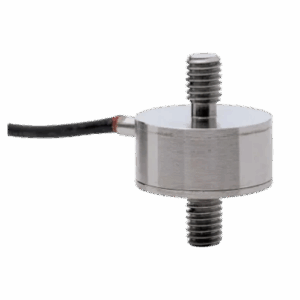

LMU series

Extra Compact Load Cells

The extra-compact load cell features a sensor diameter of just φ18 mm. It measures forces by attaching a jig to the threaded measuring shaft or fixing it to equipment. Suitable for both compression and tension testing, it offers a capacity of 500N.

SCX series

Extra Compact Load Cells

scx series, load cell, imada

This miniature load cell measures just 16(L) × 12(W) × 19.1(H) mm and is IP65-rated for waterproof and dustproof protection. It features female threads on both ends for secure equipment mounting. Suitable for both compression and tension testing, it has a capacity of 2000N.

Compact Load Cells.

Compact load cells are small-sized force sensors designed to fit into tight spaces without compromising measurement accuracy.

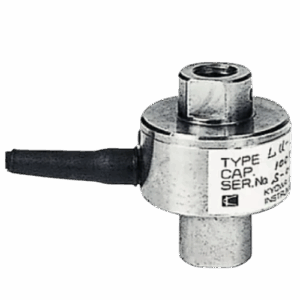

LU series

The compact load cell features a sensor diameter of approximately Φ28 mm and offers a capacity of 2000N. Designed for both compression and tension testing, it includes internal threads for secure mounting to equipment or connection to an eyebolt.

Pen Shaped Load Cells.

Pen-shaped load cells are slim, cylindrical force sensors designed to measure force in narrow or hard-to-reach spaces, resembling the shape of a pen.

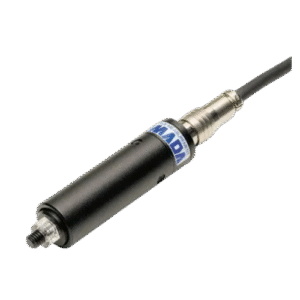

PN-50N

The pen-shaped load cell is designed for measuring small parts on substrates with dense components or testing the operating force of switches. Various attachments can be connected to the threaded measuring shaft at the tip for versatile applications.



Measurement Example Videos



Frequently Asked Questions

What are compression and tension load cells?

They are bi-directional sensors that measure both pushing (compression) and pulling (tension) forces. Shraddha Impex offers reliable load cells for you.

Where can compression and tension load cells be used?

They’re ideal for testing materials, components, or products in both force directions.

Are these load cells suitable for compact installations?

Yes, IMADA offers slim and rectangular models perfect for narrow spaces.

Do these load cells support waterproof applications?

Yes, waterproof options are available for use in harsh or outdoor environments.
