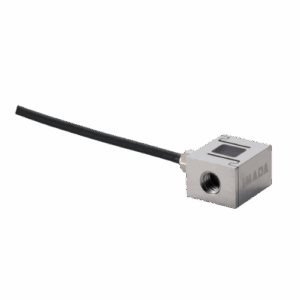

Extra Small Load Cell – SCX series

scx series, load cell, imada

This miniature load cell measures just 16(L) × 12(W) × 19.1(H) mm and is IP65-rated for waterproof and dustproof protection. It features female threads on both ends for secure equipment mounting. Suitable for both compression and tension testing, it has a capacity of 2000N.

Tags: IP65, Very Small, Lo-Mid Force, Hi Force, Screwable, Compression&Tension, eZ-Connect



SCX Series Specifications

Click the links below to download specifications for SCX series

SCX Series Specifications

Options Available for Load Cell Cables



Features of Imada SCX series

  • Ultra-compact design for measurements in tight spaces.
  • Easily mountable with female threads on both ends.
  • Supports both compression and tension applications.
  • Available as a separate sensor model with dedicated sensors for specific purposes.
  • Compatible with the Z-Connect series for interchangeable sensors, utilizing a single amplifier (eZT).

Measurement Example Videos

https://youtu.be/1w55pQWIkA4

Products related to IMADA SCX Series

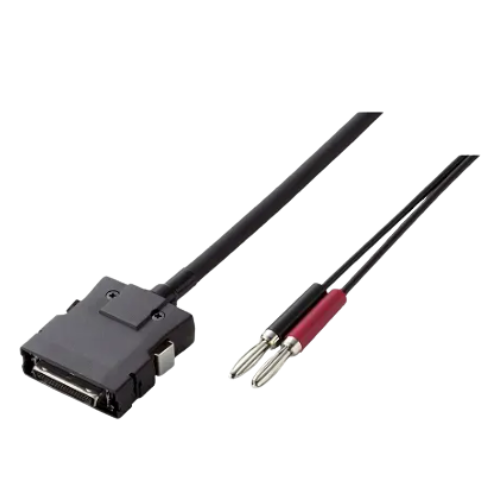

CB-108

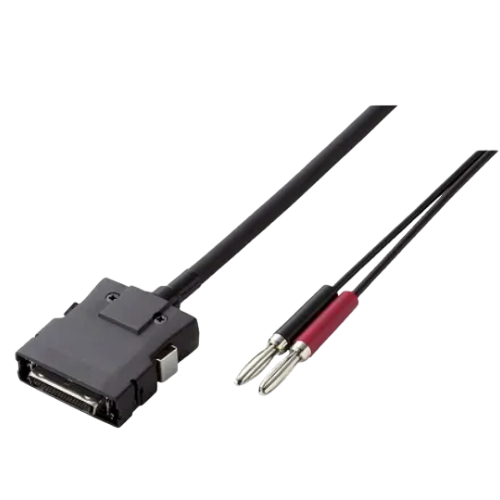

CB-118

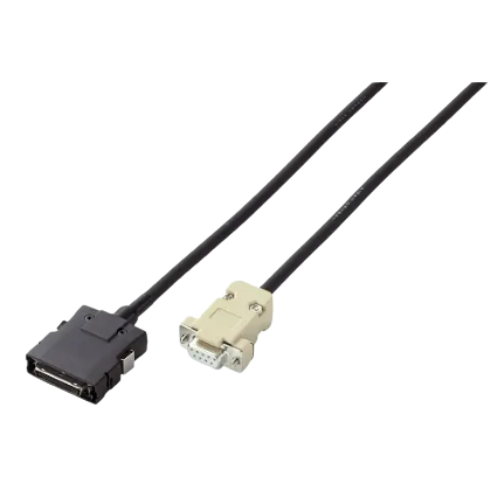

CB-208

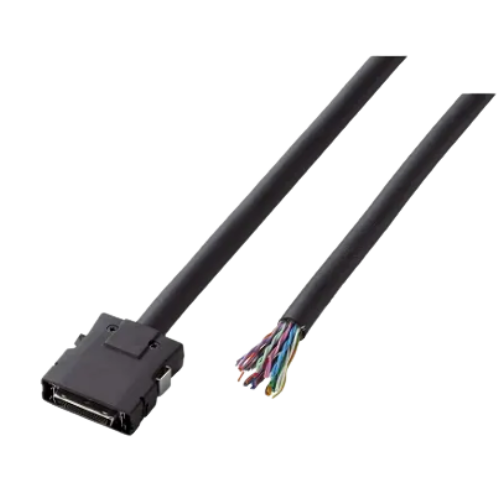

CB-908

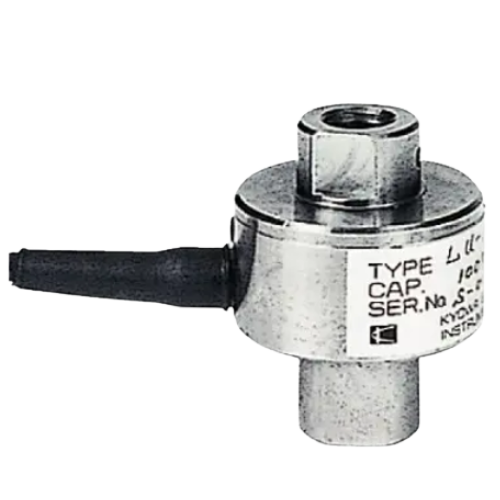

LU series

LU series
