SKKL-MS

Product Name

LED Illuminated Magnifier

Model

SKKL-MS (Magnet stand type illuminated magnifier)

Product Description

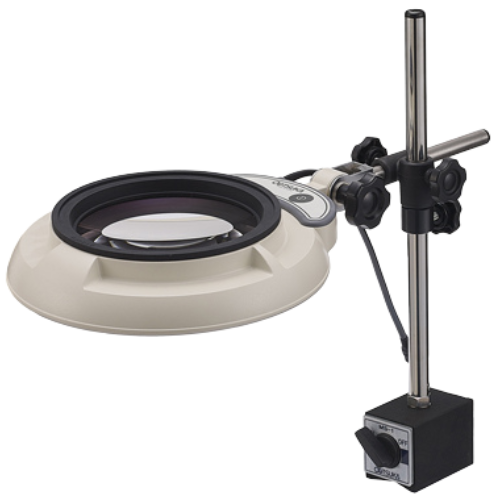

The SKKL-MS model is a magnet-based LED magnifying lamp, designed for easy attachment to any steel or metal surface without drilling or clamping. The LED-exclusive slim head is equipped with high CRI (Ra ≥ 90) board-mounted LEDs that offer bright, natural lighting with low heat generation, ensuring accuracy during inspection or assembly work. A flat diffuser and glare-reducing protector distribute light evenly and minimize visual strain.

Key Features

Strong magnetic base for easy attachment on steel surfaces
Portable LED magnifier ideal for industrial & workshop use
High CRI LED lighting (Ra ≥ 90) for clear and accurate inspection
Diffuser and anti-glare cover for comfortable long-term use
No clamps or screws required – fully mobile design
On-head power switch for effortless operation

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V: 50/60 Hz: Plug Type A *Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	7W
Dimming Function	Not available
Body
Weight (Kg)	2.1kg (Without lens and AC adapter/body weight)
Vertical /Horizontal Bar (diameter/mm)	ɸ16/ɸ13

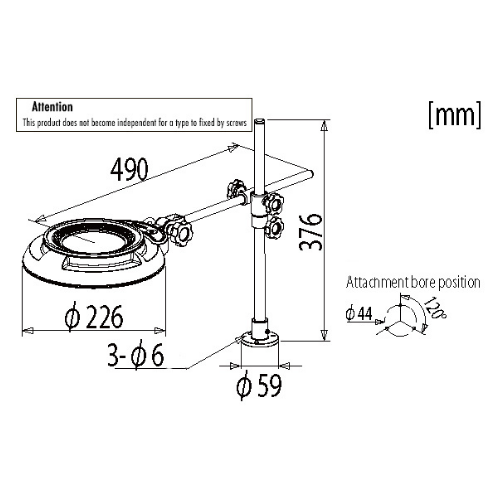

Magnet dimensions (mm)	55×77×55H
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃ ～ 35℃
Dustproof and waterproof protection grade	IP20(in door use only)
