ENVL -MS

Product Name

LED Illuminated Magnifier

Model

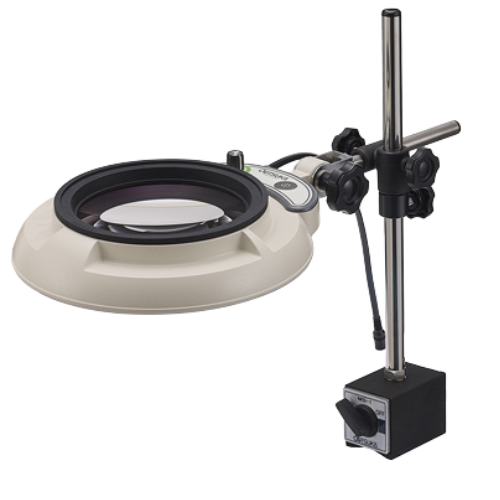

ENVL-MS (Magnet stand type illuminated magnifier)

Product Description

The ENVL-MS model is a magnet stand type LED magnifier, specially built for steel surfaces requiring tool-free, stable attachment. Ideal for flexible industrial applications, it allows quick repositioning without clamps or screws.

Its slim, LED-exclusive head features board-mounted LEDs with high color rendering (Ra ≥ 90) for enhanced visibility and accurate inspection. A flat diffuser and glare protector ensure a soft, even light that reduces eye strain during close-up work.

Equipped with a knob-based light adjustment, the brightness can be finely tuned between 100% to approximately 10%, allowing control as per task requirement. Both the on/off switch and the dimming knob are conveniently placed on the magnifier head for easy access.

Key Features

Magnetic base for mounting on steel surfaces without clamps
High color rendering LED (Ra ≥ 90) with low heat output
Glare-reducing diffuser for soft and even illumination
Light intensity adjustable from 100% to ~10%
Head-mounted on/off switch and dimming knob for full control

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	2.1kg (Without lens and AC adapter/body weight)

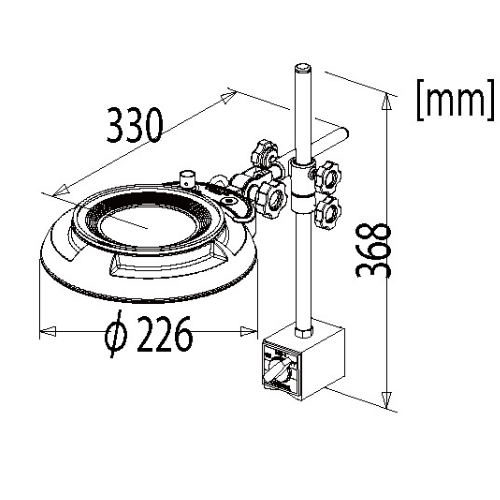

Virtical/Horizontal Bar (Φ/mm)	ɸ16/ɸ13
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
