ENVL -F

Product Name

LED Illuminated Magnifier

Model

ENVL-F (Free-arm illuminated magnifier)

Product Description

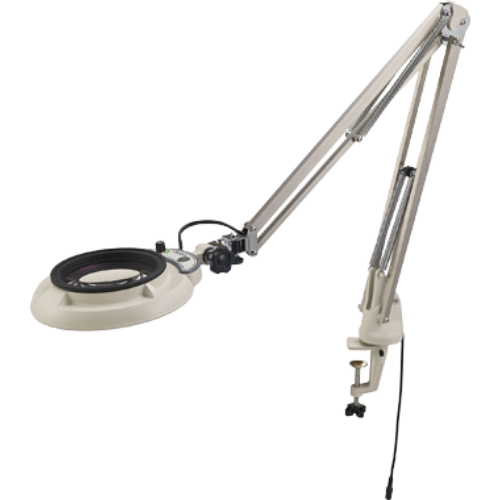

The ENVL-F model is a swing-arm LED illuminated magnifier designed for desk clamp mounting, offering precise lighting and magnification for professional tasks. It features a slim, LED-exclusive head using board-mounted LEDs with high color rendering (Ra ≥ 90) and efficient heat management.

A flat diffuser and lens protector minimize glare and provide even lighting, reducing eye strain. The on-head control panel includes both an on/off switch and a light adjustment knob, allowing users to easily set the brightness level from 100% down to approximately 10%.

Key Features

Clamp-mounted swing-arm LED magnifier for desks
High CRI (Ra ≥ 90) board-mounted LED with minimal heat
Glare-free diffuser and lens protector for eye comfort
Light adjustable from 100% to ~10% using head knob
On/off switch and brightness control on the head
Compact clamp design with horizontal swing head

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V.Please contact your sales dealer for details.
Power consumption	10W
Dimming Function	Available / 100-10%
Body
Weight (Kg)	2.0kg (Without lens and AC adapter/body weight)
Possible clamping width(mm)	15～60
AC Adapter	dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires)
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
