Load Cells

What is a Load Cell

Load Cells, also known as Load Sensors or Load Transducers, measure force or torque and convert it into an electrical signal. They come in various shapes, like beam, coin, and S-shape, making them suitable for compact spaces or integration into equipment. Some models are designed to operate in harsh environments, including those with extreme temperatures, dust, and exposure to water.

List of Load Cells

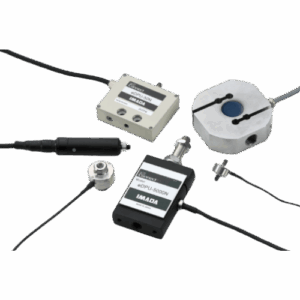

Compression and Tension Load Cells

The compression and tension dual-purpose load cell is designed for versatile use in both compression and tension measurements.

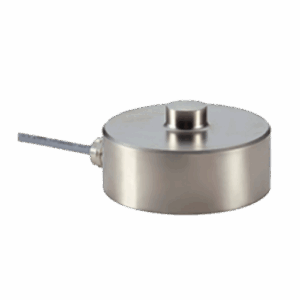

Compression Load Cells

Compression load cells are designed to be compact for use in limited spaces. Available in various types, including waterproof models and options for wide temperature ranges.

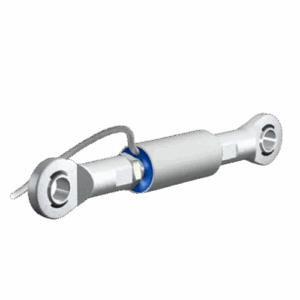

Tension Load Cells

The Tension load cell is designed to measure tension effortlessly.

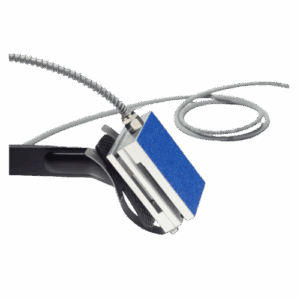

Dedicated Load Cells

This dedicated load cell is designed for specialized measurements, such as testing automobile and motorcycle brakes or automatic doors. It ensures secure, easy fixation and excellent workability for precise testing.

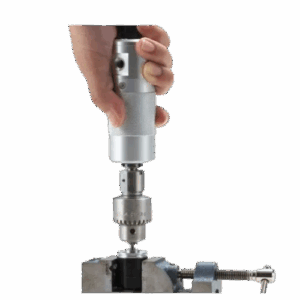

Torque Load Cells

The torque load cell measures rotational or twisting force by hand-holding and turning the sensor. Various attachments can be mounted to the sensor tip for different applications.

How to choose the right and best Load Cell

Start by defining your required force type (compression, tension, bi-directional, or torque) and selecting a capacity that exceeds your maximum expected load. Choose a form factor—beam, coin, S-shape, rectangular, or pen-type—that fits your sample geometry and installation space

Frequently Asked Questions

What is a load cell (force sensor), and how does it work?

A load cell, also known as a “Load Transducer” or “Load Sensor,” is a device that detects force or torque and converts its magnitude into an electrical signal. They come in various shapes—such as beam, coin, or S-shape—and can be installed in small spaces or built directly into equipment.

What shapes do IMADA load cells come in?

They’re available in beam, coin, S-shape, and specialized rectangular or pen-type designs for narrow gaps.

Are there waterproof options for IMADA load cells?

Yes, both compression and bi-directional load cells offer waterproof variants.

Can IMADA load cells operate in harsh environments?

Yes, many models tolerate high/low temperatures, heavy dust, and even direct water exposure.
