Attachments for score bend test

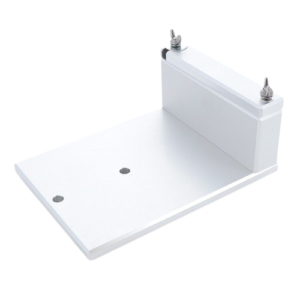

• The score bend test device comprises two critical components: the upper attachment for the force gauge and the lower attachment for a stable stand.

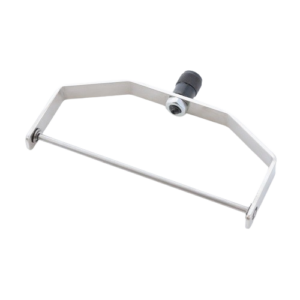

• The upper attachment is intricately designed to securely hold the force gauge, ensuring precise alignment, which in turn facilitates controlled lifting of corrugated cardboard until the point of bending.
• Adhering to JCS T0001:2000 criteria, this setup guarantees measurements that are both reliable and precise.
• Further analysis is facilitated through optional software that generates graphs illustrating force values over time.

• JCS T0001 [ 2000 ] [Corrugated fibreboard-Determination of bending for score and crease]

Corrugated Fiberboard－Determination of Bending for Score and Crease (Complies with JCS T0001:2000)

https://youtu.be/58Oa-b9dMLc?si=2lvGVcE_rT7V9_HX

This video showcases the process of measuring the bending force of corrugated fiberboard in accordance with JCS T0001:2000 standards. Through the use of IMADA’s specially designed attachment and testing equipment, the maximum force during the bending process is recorded on a box-making machine. The variations in bending force, which are crucial in determining the quality of corrugated fiberboard, are monitored to prevent machine shutdowns. Additionally, the graphing software provides a visual representation of the force transition, which aids in quality control and ensures compliance with industry standards.

Inquiry number 3H5003A

Present the “inquiry number” below when you contact us, for prompt assistance.

Relevant Industrial Standards

JCS T0001 [ 2000 ] [Corrugated fibreboard－Determination of bending for score and crease]

Related sample

• Corrugated box
• Paper carton

Caution

The sample testing configuration demonstrated in the video is merely an example, and its effectiveness is dependent on the sample’s material or shape. The actual testing setup may vary, depending on the sample, measurement method, and the testing equipment used. As such, it’s important to choose the appropriate model for compatibility. Additionally, when adapting the setup for different samples, it’s crucial to exercise caution and consider any unique characteristics. Always refer to the specifications of the selected product model to ensure accuracy.
