Rotation Support Jig for HTGS/A

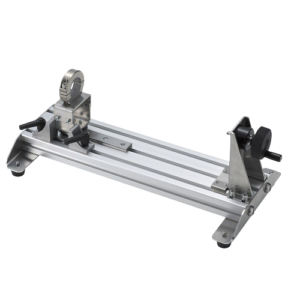

The RSH series, tailored to HTGS/A torque gauges, has a 5N-m capacity for measuring horizontal torque. This rotation support jig facilitates continuous rotation of samples beyond 360 degrees and incorporates features such as a handle, horizontal movement, angle options, and height adjustment, enabling precision and versatility in torque measurements.

Features

  • The RSH Series, specifically designed to complement HTGS/A torque gauges, is a specialized rotation support jig that offers the flexibility of continuous sample rotation beyond 360 degrees.
  • It can be transformed into a versatile tester with various attachments, which makes it an ideal tool for torque measurements and precise torque-angle analysis utilizing angle-meters.

RSH Series Specifications

Example of Product Configuration

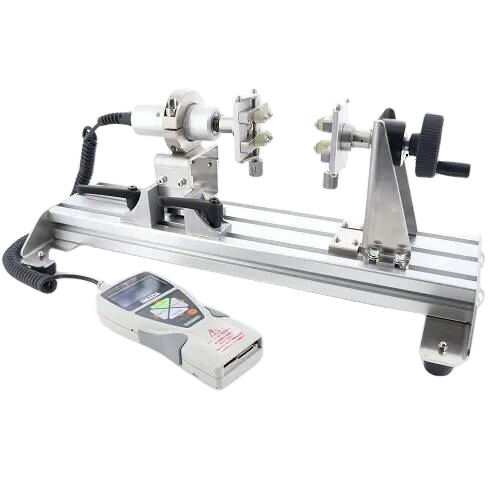

  • Confurigration 1 using RSH-5N-RA 1R4004A

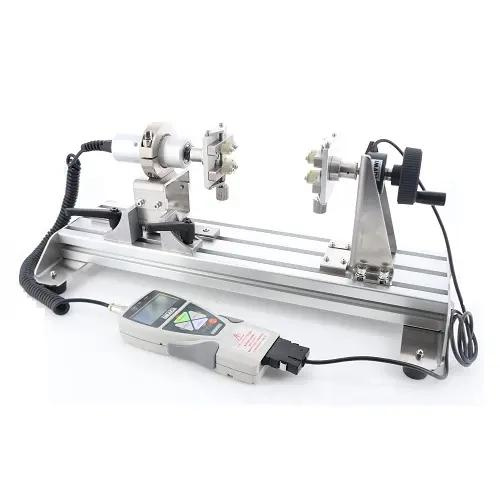

  • Confurigration 1 using RSH-5N 1R4002A

Features

  • It is a manual rotation support jig that facilitates the use of HTGS/A torque gauges to measure horizontal torque up to 5N-m.
  • It is particularly useful for precise torque-angle analysis when used alongside angle-meters.

Inquiry number 1R4001A

Present the “inquiry number” below when you contact us, for prompt assistance.

Product used

  • Handheld Digital Torque Gauge HTGA-5N
  • Manual Test Stand RSH-5N-RA
  • Optional Attachment HT-ST
  • Optional Attachment Force Recorder Professional

Caution

Refer to the product specifications for additional details. The configuration may differ based on sample characteristics and measurement conditions, and inaccuracies may arise if the recommended instrument capacity is exceeded. It’s critical to review the guidelines thoroughly to ensure precise measurements.

Features

  • A highly advanced torque testing tool with a maximum capacity of 5N-m.
  • As a manual rotation support jig designed for the HTGS/A series, it facilitates precise horizontal torque measurement.

Inquiry number 1R4002A

Present the “inquiry number” below when you contact us, for prompt assistance.

Product used

  • Handheld Digital Torque Gauge HTGS-5N
  • Manual Test Stand RSH-5N
  • Optional Attachment HT-ST

Caution

For specific details regarding the configuration process, please refer to the product specifications. It’s crucial to exercise caution as the recommended instrument capacity may vary depending on the anticipated force to be loaded. It’s essential to carefully review the guidelines to ensure precise and reliable measurements.
