OLIGHT3L-FD

Product Name

LED Illuminated Magnifier

Model

OLIGHT３L-FD (Free-arm-type illuminated magnifier / Fixed-type desk holder)

Product Description

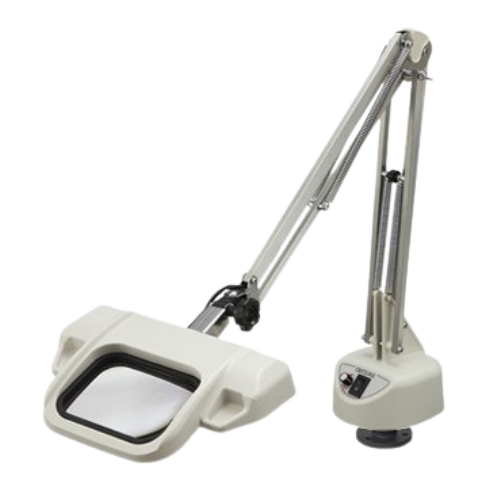

The OLIGHT3L-FD is a precision LED illuminated magnifier with a diagonally-mounted white LED lighting panel. This angled light enhances the visibility of surface unevenness, scratches, and dents on materials like metal and resin, making it ideal for detailed surface inspection.

Its rectangular lens is specially designed to minimize peripheral distortion, enabling clear, accurate viewing even during extended work periods. For enhanced visual comfort, optional AR-coated lenses are available to reduce refraction and maximize light transmission—minimizing eye fatigue and improving work accuracy.

Key Features

Diagonal LED lighting highlights surface defects and textures
Excellent for detecting scratches, dents on metals and resins
Rectangular lens reduces edge distortion during prolonged use
Optional AR-coated lenses for better light clarity and less fatigue
Free-arm design with fixed desk mounting for stability and flexibility

Lens spec	Free arm-type
Magnification	2x 3.5x
Lens dimension (mm)	144×108
Effective lens dimension (mm)	139×103
Lens Material	Optical glass
Working distance (mm)	2x/160, 3.5x/120
Lens weight (g)	2x/560, 3.5x/730
Lens system	Recta-lens system
AR Coating options	Available / 2x 3.5x
Lighting
Light source	LED light panel
Power Supply Voltage	100～240V, 50/60Hz, plug type A * It is usable 125 ～ 240V by changing the cord with attached AC plug.For more information, please contact your distributor.
Power consumption	9W
Standby power	0W
Dimming Function	Available / adjustment range 100～50%

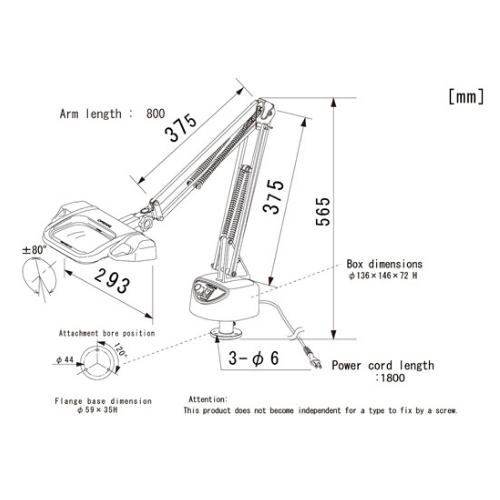

Body
Product weight	OLIGHT3L 2x (approx. 3.0Kg) O-LIGHT III-L 3.5x (approx. 3.3Kg)
Arm length (mm)	1000
Head Dimensions (mm)	293×205
clampable width (mm)	15～60
Operating temperature range	5℃ ～40℃
Dust-proof and waterproof protection grade	IP20 (indoor use only)
