Digital Torque Tester from Imada

Imada’s torque testers are versatile tools capable of measuring various types of torque, including opening and closing force, turning force, and sliding resistance. They offer a comprehensive range of torque gauges and testing products, such as a test stand for increased repeatability, a torque angle tester, and more, to meet your diverse torque and force measurement requirements. With Imada’s torque testers, you can accurately measure the torsional strength of circuit boards, the tightening force of screws, the opening and closing force of PET bottles, jars, and lipsticks, among other applications. The testers can display torque readings in a variety of units, including N-m, N-cm, kgf-m, kgf-cm, lbf-in, or ozf-in, to suit your needs.

Besides Torque Testers, you can find Digital Force Gauges from Imada and other force measurement tools from Imada in India.

What is a Torque Tester?

A torque tester is a precision instrument used to measure the rotational force, or torque, applied to a rotating component. It is commonly used in industries such as automotive, aerospace, and manufacturing to ensure that components are tightened to the correct torque specification.

A torque tester typically features a torque sensor and a display to provide accurate and easy-to-read measurements in various units. Some models also have customizable settings for testing mode, peak hold, and data logging. There are various types of torque testers available, including manual, digital, and pneumatic models.

Overall, a torque tester is an essential tool for ensuring the accuracy and safety of mechanical components in various applications. Its precision measurements and advanced features make it a top choice for professionals in industries that require high levels of precision and quality control.

Types Of Torque Tester

Screw cap torque tester

The easy table top screw cap torque tester allows you to measure opening and closing force of various screw caps such a PET BOTTTLE , JARS, Torque of LIPSTICK, ROTARY SWITCHES, MEDICINE JARS and many more. It can measure from 0.5N-m(50N-cm) upto 10N-m(1000N-cm)

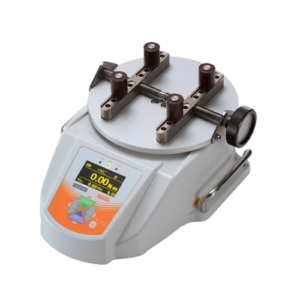

DTXS/DTXA

Imada’s standard desktop screw cap torque tester allows you to measure the opening and closing force of various products. This next series has an improved measurement stability and expandability. With high speed sampling at 2000 Hz ensures high repeatability in both peak and graphing measurement.

Handheld Digital Torque Gauge

User friendly yet functional. Imada Handheld digital torque gauge is ideal for tightening/loosening a screw/ turning a rotary switch. The versatile torque gauge improves testing with its various data output/ data management options. Having a high sampling rate of 2000 Hz benefits with accurate results and capturing small changes and peak values.

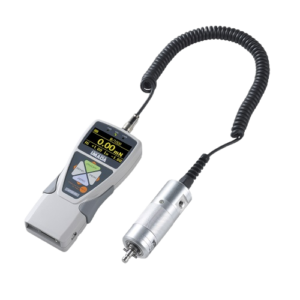

HTGS/HTGA

Imada HTGS and HTGA digital torque gauges are efficient and compact handheld units that are ideal for measuring tightening and loosening of screws, bottles, rotary switches, and more. Imada gauges feature a range of optional attachments that enable you to achieve the most precise results for your specific needs. With a capacity ranging from 50 N-cm to 1000 N-cm (10 N-m), the handheld digital torque gauges provide a versatile and convenient solution for your torque measurement requirements.

Built in Torque gauge

Built-in digital torque gauge is designed to integrate the sensor into torque testers or torque control systems in the production line for torque measurement. It suits for measurements in limited space due to the small sensor.

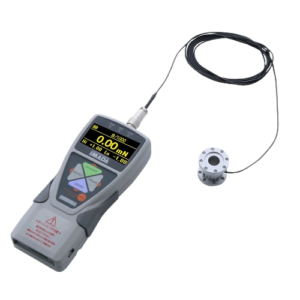

HTGS-TFX/HTGA-TFX

Built-in digital torque gauge HTGA-TFX series is a high functionality model with 500N-cm(5N-m) to 1000N-cm(10N-m) capacity. It is designed to integrate the sensor into torque testers or torque control systems in the production line for torque measurement. The torque value can be accurately measured by incorporating a torque gauge into production or inspection equipment, such as by integrating it into a torque tester or a torque control system in a production line. The torque gauge can also be combined with a customized angle meter, which allows for the measurement and display of both the torque and angle values on the Imada force gauge.

Torque Tools Tester

Imada Torque tester checks the torque of a motor screwdriver and torque driver easily. It is ideal for daily torque maintenance. Torque can be easily measured by inserting the tool into the joint of the torque meter. It helps you achieve pass/fail results on the indicator.

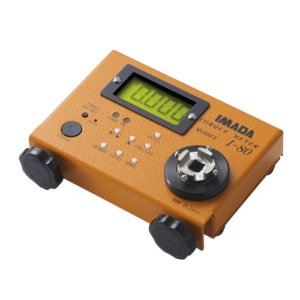

I-8/I-80

The IMADA I-8 and I-80 are high-quality torque tool testers designed for easy and effective daily maintenance of electric screwdrivers and torque drivers. With a capacity range of 80 cN-m (800 mN-m) to 800 cN-m (8.0 N-m), these testers are ideal for a wide range of applications. Their simple operation and ease of use make them the perfect solution for daily torque inspections. Simply insert the screwdriver into the torque meter, activate it, and measure the torque with the convenient pass/fail feature. The IMADA torque tester is a reliable and effective tool for maintaining high torque standards.

Torque Tester Calibration Kit & Procedure

A torque tester calibration kit is a set of tools used to calibrate and maintain the accuracy of a torque tester. Calibration is essential to ensure that the torque tester provides accurate and reliable measurements.

The calibration kit typically includes a known weight or torque standard and a calibration certificate to verify the accuracy of the tester. The procedure for calibrating a torque tester typically involves the following steps:

Verify the torque tester is clean and free of debris or damage that may affect accuracy.
Install the calibration kit and set the torque tester to the appropriate mode and torque range.
Apply the known torque standard to the torque tester and compare the reading to the expected value.
Adjust the torque tester as necessary to bring the reading into agreement with the known standard.
Repeat the calibration process at regular intervals, typically annually, to ensure continued accuracy.

Proper calibration of a torque tester is crucial for ensuring the safety and reliability of mechanical components in various applications. By using a torque tester calibration kit and following the proper calibration procedure, professionals can ensure accurate and reliable torque measurements.

How to use a Torque Tester

The use of a torque tester involves the following steps:

Select the appropriate torque tester for the application, considering factors such as torque range, measurement units, and testing mode.
Attach the torque tester to the component being tested, such as a nut, bolt, or screw.
Apply torque to the component using a torque wrench or other torque application device.
Read the torque measurement on the display of the torque tester.
Compare the measurement to the desired torque specification for the component.
Adjust the torque as necessary and retest until the desired torque is achieved.
