Imada RS‑232C Cables | Shraddha Impex

This cable connects to an external device, such as a PC or PLC, and enables the recording of results and changes in measured values via RS-232C communication.

List of RS232C Cables

RS232C Cable for ZT

CB-208

The CB-101 is an analog cable designed to connect DS2 series force gauges with analog devices such as pen recorders, oscilloscopes, and multimeters.

RS232C Cable for DST/DSV

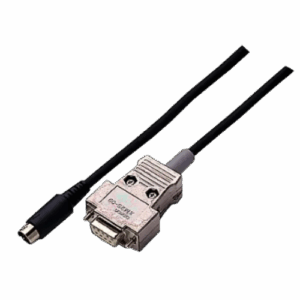

CB-203

The CB-203 is an RS232C cable designed to connect DST and DSV series force gauges to a PC, enabling data logging and control from the computer.

RS232C Cable for ZP/Z2/HTG2/DTX

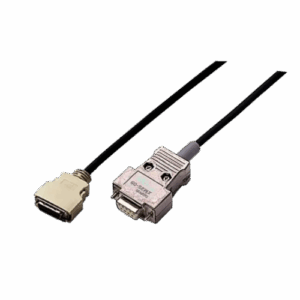

CB-204

The CB-204 is an RS232C cable designed to connect ZP, Z2, HTG2, and DTX2 series force and torque gauges to a PC, enabling data logging and control from the computer.

Frequently Asked Questions

What is an RS‑232C cable?

An RS‑232C cable is a serial communication cable used to connect Data Terminal Equipment (DTE), such as computers, to Data Communication Equipment (DCE) like modems or instruments. It follows the RS‑232C (or EIA‑232‑C) standard for voltage levels, pin configurations, and connectors.

What types of connectors are commonly used?

The most common connectors are DB‑9 (DE‑9) and DB‑25 D‑sub connectors. DB‑9 is widely used today due to its compact size, while DB‑25 was more prevalent in early implementations.

What kinds of devices still use RS‑232C today?

Despite the rise of USB, RS‑232C remains common in industries for connecting lab test equipment, sensors, industrial controllers, and instruments. It’s valued for its simplicity and robustness.

What is the difference between a straight-through and a null-modem cable?

A straight-through cable connects matching pins (e.g., pin 2 to pin 2) and is used when connecting DTE to DCE devices.
A null‑modem cable crosses transmit and receive pins to allow direct connection between two DTE devices (like two PCs).
