XY-500N series

XY-Table

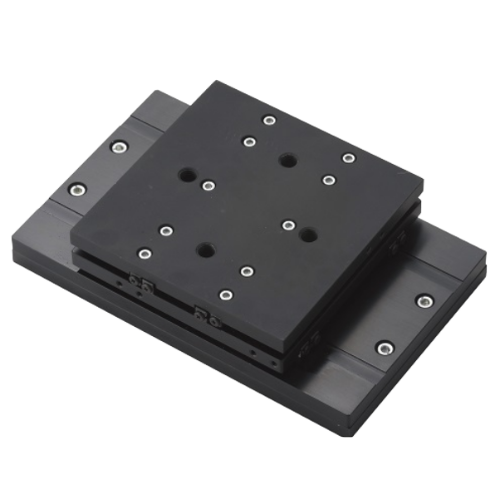

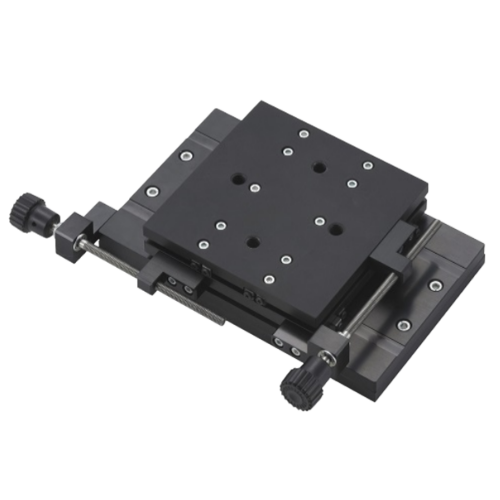

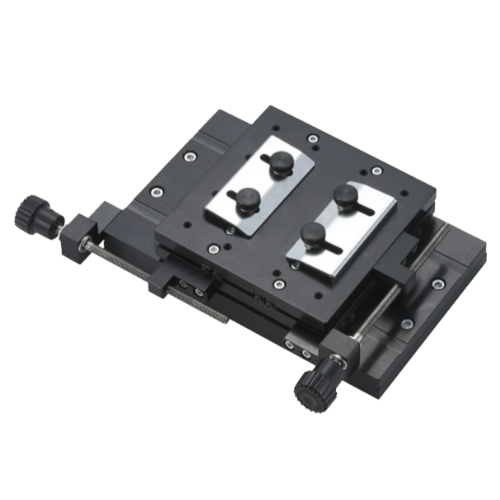

The XY-500N series is an XY-table with a 1000N capacity. It is well-suited for tension and compression testing of small samples like PCBs, thanks to its fine position adjustment feature (0.8 mm increments available on XY-500N-M8/BB).

Tags: XY Alignment, Knob, Lo-Mid Force

XY-500N Specifications

Click the links below to download specifications for XY-500N

XY-500N series Specifications

Features of Imada XY-500N

  • Well-suited for tension and compression tests on small samples like PCBs, with fine position adjustments (0.8 mm increments on XY-500N-M8/BB)

  • Low-profile table helps maintain sufficient stroke on the vertical test stand

  • Offered in three types to match different testing needs
