Shear Test Jig

Imada offers a specialized shear test attachment for measuring the peel strength or shear test of soldered or glued electronic components. This type of test is particularly important in the PCB industry where the strength of soldered or glued components is crucial for ensuring the highest quality products.

Imada’s shear attachments are designed specifically for this application, including solder joint tests and chip shear tests for low to mid force applications. With Imada’s shear test attachments, customers can confidently and accurately measure the strength of their electronic components, ensuring the highest quality products.

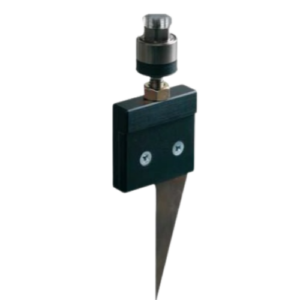

SJ series: Chip shear jig:  SJ series is a chip shear jig with capacity upto 100N for solder joint strength test. Imada offers 5 types to meet your testing requirements. Helps in solder joint test/ chip shear test and pull test.

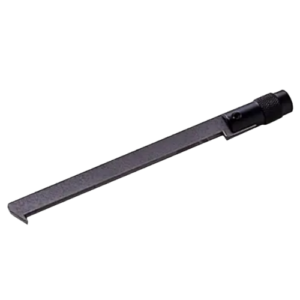

GT Peel Fixture: Imada’s GT peel fixture is an excellent tool for performing peel or shear testing of PCBs and other electronic components. With a 500N capacity, this chip peel fixture is perfect for testing in narrow spaces due to its compact and lightweight design. Its versatility makes it ideal for use in a variety of applications, and its capacity makes it suitable for low to mid-force testing.

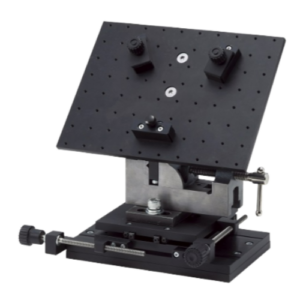

SJS series: The SJS series is a precision alignment stage designed for lead-free solder or IC chip solder joint strength testing with a capacity of up to 100N. The alignment stage provides the flexibility to switch between 45 or 90-degree angles, making it easier to adjust the position of tiny parts for accurate testing. This feature enables precise positioning of the sample to obtain the most accurate and reliable results.
