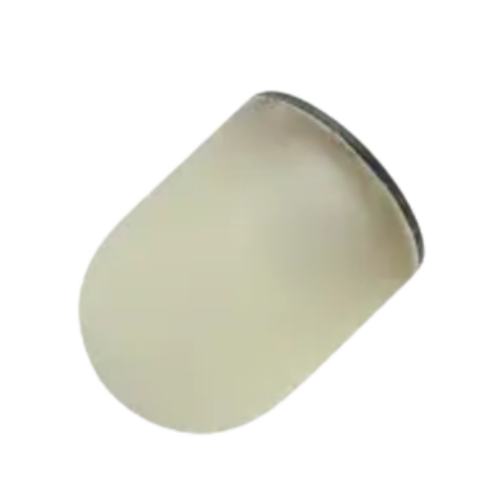

UR series

Urethane Spherical Compression Jig

The UR series is a urethane spherical compression jig with a 50 N capacity. Its urethane material and rounded shape let it mimic the feel of a finger, making it ideal for operability testing of switches and similar products.

Tags: Hemisphere Shape, Urethane, Light Weight, Lo-Mid Force





UR series Specifications

Click the links below to download specifications for UR series

UR series Specifications

Compression Attachments Comparison Table

Features of Imada UR series

  • Ideal for operability testing of switches and similar products, as its urethane material and rounded shape can mimic a finger’s touch.
  • The soft material also makes it safe for final inspections since it lowers the risk of damaging samples.
  • Available in two hardness levels.
  • Custom options are offered, including changes in material, size, and capacity to suit your testing needs.

Products related to UR series

A-2/S-2

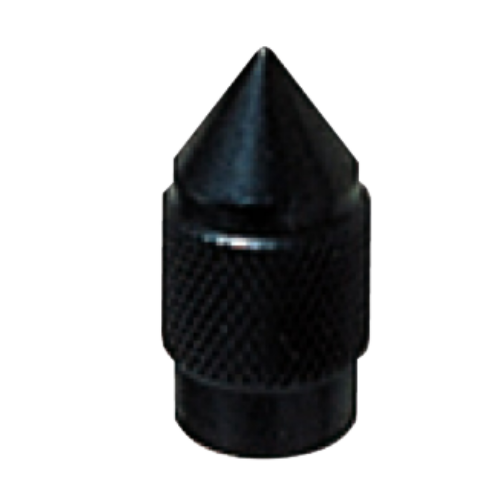

A-3/S-3

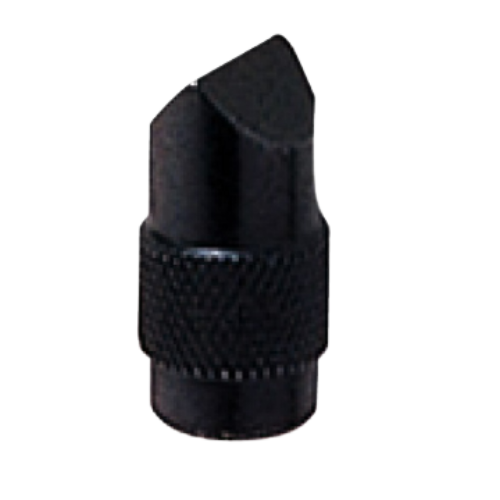

A-4/S-4

A-5/S-5
