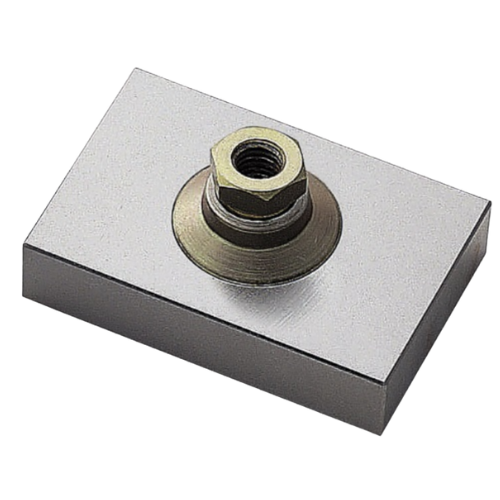

SQ-5030/5075/5150

Rectangular Jig for High-Load Compression Testing

SQ-5030, SQ-5075, and SQ-5150 are rectangular jigs designed for high-load compression tests with a 5000 N capacity. Their free joint can move up to 15 degrees in all directions, which helps improve measurement accuracy. They are suitable for durability tests of retort pouches, hardness tests of balls, and similar applications.
Note: SQ-5030 does not have this function.

Tags: Rectangular Shape, Free Joint, Hi Force





SQ-5030/5075/5150 Specifications

Click the links below to download specifications for SQ-5030/5075/5150

SQ-5030/5075/5150 Specifications

Compression Attachments Comparison Table

Features of Imada SQ-5030/5075/5150

  • Ideal for durability testing of retort pouches, hardness testing of balls, and similar uses.
  • The free joint allows movement up to 15 degrees in all directions for better measurement accuracy (available only on SQ-5075 and SQ-5150).
  • A magnetic design makes plate replacement easy (also only on SQ-5075 and SQ-5150).
  • Custom options are available, including changes in material, size, and capacity to match your testing needs.

Products related to SQ-5030/5075/5150

A-2/S-2

A-3/S-3

A-4/S-4

A-5/S-5
