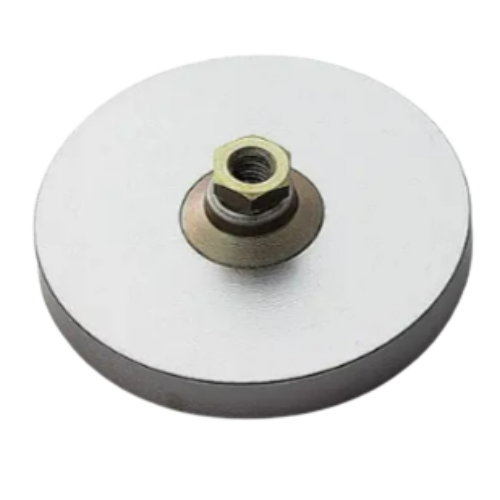

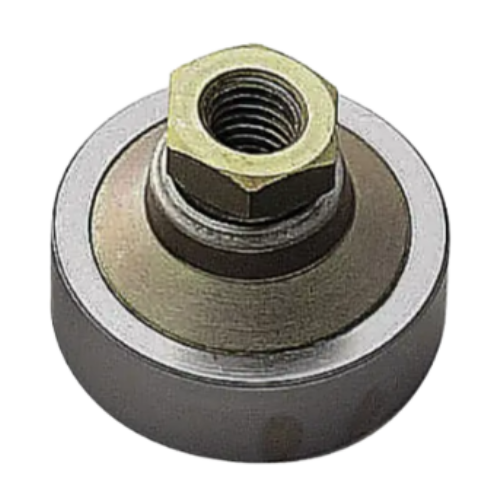

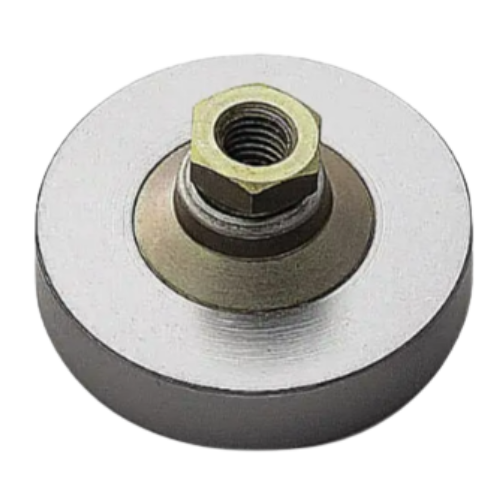

PC-5040/5060/5100

Disk-shaped Jig for High Load Compression Testing

PC-5040, PC-5060, and PC-5100 are disk-shaped jigs designed for high-load compression tests with a 5000 N capacity. Their swivel design, which moves up to 15 degrees in all directions, helps ensure accurate measurements. They are ideal for durability tests of retort pouches, hardness tests of balls, top-load (buckling) tests of PET bottles, and similar applications.

Tags: Disk Shape, Free Joint, Hi Force





PC-5040/5060/5100 Specifications

Click the links below to download specifications for PC-5040/5060/5100

PC-5040/5060/5100 Specifications

Compression Attachments Comparison Table

Features of Imada PC-5040/5060/5100

  • Ideal for durability tests on retort pouches, hardness tests on balls, top-load tests on PET bottles, and similar applications.
  • The swivel design, which moves up to 15 degrees in all directions, helps improve measurement accuracy.
  • A magnetic setup makes it easy to replace the plates.
  • Available in 40 mm, 60 mm, and 100 mm diameters to match different sample sizes.
  • Custom options are available, including changes in material, size, and capacity to suit your testing needs.
