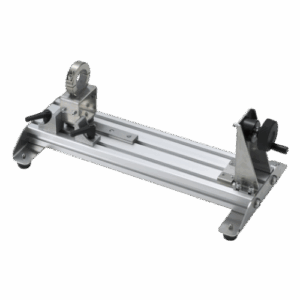

Rotation Support Jig for HTGS/A

RSH series



The RSH series is a rotation support jig with a 5 N-m (500 N-cm) capacity, designed for use with HTGS/A series torque gauges. It assists in measuring torque in the horizontal direction and allows continuous rotation of samples beyond 360 degrees.

Tags: For HTGS/A/eHT, Handle, Horizontal Move, Angle Option, Height Option

RSH series Specifications

Click the links below to download specifications for RSH series

RSH series Specifications



Features of Imada RSH series

  • Rotation support jig for HTGS/A series torque gauges
  • Allows continuous rotation of samples beyond 360 degrees
  • Can be combined with attachments to function as a tester for various torque measurements
  • Ideal for analyzing torque-angle relationships when used with an angle meter.
