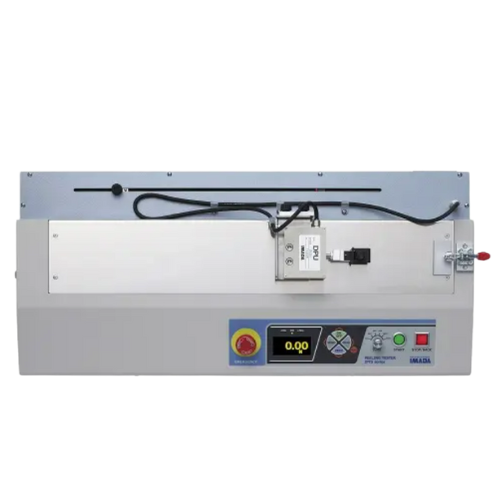

Peeling Tester

The Peel Strength Tester has a 5 N capacity and is used to measure the peel strength of cover tapes on embossed carrier tapes holding semiconductors and electronic components, in compliance with JIS and other industrial standards.

The Next Series with firmware version 5 or later provides improved measurement stability through low noise performance, enhanced expandability with optional functions available via IMADA-Connected.com, and easy access to downloadable software and instruction manuals.

Tags: Emboss Carrier Tape, Peel Test, Single Touch, Incl Software, Mid-Lo Force

IPTS-5N Specifications

Click the links below to download specifications for IPTS-5N

IPTS-5N Specifications

Additional Functions and Various Services for Next Series

Force Recorder Light/Standard Specifications

Additional downloadable Chargeable Functions for Force Recorder Next Series

Features of Imada IPTS-5N Peeling Tester

Specifically designed for testing embossed carrier tape peel strength, in line with IEC and JIS standards
High sampling rate of 2000 Hz ensures precise detection of rapid force changes and accurate peak values
Easy sample setup and one-click operation—just press START to begin testing and record data
Captures small force changes and provides visual analysis with a graph overlay function (up to 5 graphs) using the included graphing software
Next Series (Firmware Ver. 5 or later) supports additional functionality and software downloads from the IMADA website

User Guide and Measurement Example Videos
