Compression & Tension Attachments for Force Measurement

This is an attachment that can be used for both compression and tension tests.

There are also attachments exclusively for compression test or tension tests.

Types of Compression and Tension Attachments

Pin Grip

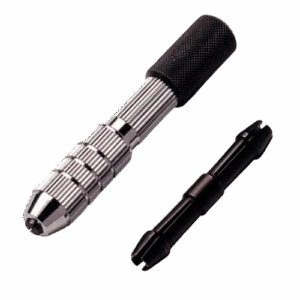

CP-150N

The CP-150N is a pin gauge with a 150N capacity, designed to securely grip wire-shaped samples up to 3.2mm in diameter.

Jacob’s Chuck

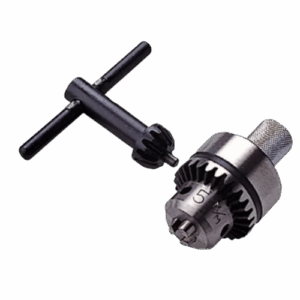

GC-5/15

The GC-5/15 is a Jacob’s chuck with a 1000N capacity, designed to securely hold samples using a chucking mechanism that reduces the risk of slippage. It is especially suited for gripping round, rod-type samples.

Cap Clamping Jig

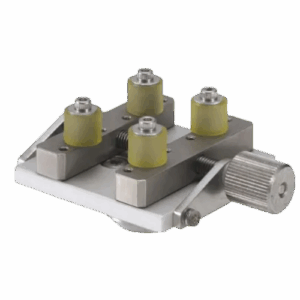

CCJ series

The CCJ series is a cap clamping jig with a 100N capacity, designed to securely hold round-shaped samples using four gripping pins. It is ideal for insertion and extraction tests on items such as cosmetic package caps, connectors, and similar components.

Frequently Asked Questions

What are compression and tension attachments?

Attachments designed to apply either compressive (pushing) or tensile (pulling) force to an object during testing, enabling force gauges to measure either compression or tension loads accurately.

What materials or objects are tested with these attachments?

Commonly tested items include springs, fasteners, rubber seals, buttons, small components, wires, foams, and packaging materials. Anything requiring precise compression or tensile evaluation can be tested.

How do I choose between compression and tension attachments?

Use compression attachments (e.g., flat plates, probes) when you need to push against a surface.
Use tension attachments (e.g., hooks, grips, clips) when you need to pull on an item.
Your choice depends strictly on the direction of the force you need to apply for your test.

Do attachment materials matter?

Yes. Attachments are often made from steel, aluminum, or hardened materials to ensure durability and maintain calibration. The surface finish (smooth vs textured) can also impact test accuracy, depending on your sample.
