SDT-203NB – UNIVERSAL TESTING MACHINE

UNIVERSAL TESTING MACHINE SDT-203NB

SDT-203NB type is the tension and compression testing machine, which enables various kinds of testing up to 2kN maximum load. The electric drive is constructed with the ball screw and a linear guide. This type is suitable for testing which requires a comparatively long stroke.

■Characteristics
○It is adequate for relatively long-stroke measurements.
○It can be easily handled by exclusive software. (Option)

■Usage example
○Pulling examinations of well-stretchy samples such as rubber.
○Examination with large strokes such as peeling tests.

■Options

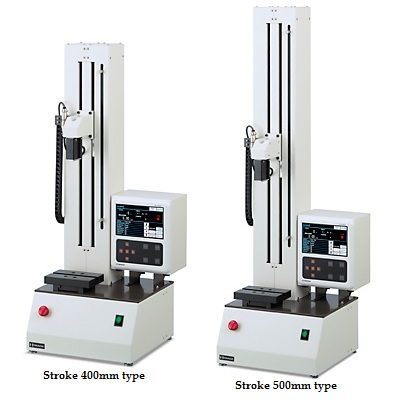

○The stroke of 400mm / 800mm can be made as an option, too.
○Output of ANALOG/PRINTER
This option is necessary for the connection to Analog recorder or printer.

SPECIFICATION:
■Standard specifications

Model SDT-203NB-□ ※1
Maximum Load 2kNConvenient Function Memory function of the examination conditions
Peak/Bottom Hold function
Cycle mode function
Detect function of Break Point
Detect function of Start Point
Auto Cancel/Auto Feed function
Auto Start Point Return function
Judgment function
Load Display [The specifications of Load Range] Reference
[The combination of Load Range according to the model]
Minimum Unit
Load Precision JIS 1 class (Indication value ±1% range)
Displacement Minimum Unit 0.01mm
Drive type Brush less DC Motor
Speed Range5〜500mm/min
Distance from a Table to a Load-cell Max. 647mm
(An effective stroke is decided by selection of an attachment)		Output ※2USB
Distance of Sample to Column80mmPower supply AC100V 5A
Table Size 100×150mm(With T-groove)Weight Approx 47kg
Safety Device Optional setting Upper and Lower Limit
Over-load Prevention function		 SizeW376×D320×H1097mm （View drawings）

※ The usable range is recommended at 20〜100% of each setting Load Range.
※ t is possible as an option to add Load Range other than the above listed.
■Combination of Load Range according to the model

Model Usable Range Setting Load Range
2kN1kN500N200N100N50N20N
SDT-203NB-200R1400N〜2kN●––––––
SDT-203NB-200R2100N〜2kN●–●––––
SDT-203NB-200R320N〜2kN●–●–●––
SDT-203NB-100R1200N〜1kN–●–––––
SDT-203NB-100R240N〜1kN–●–●–––
SDT-203NB-100R310N〜1kN–●–●–●–
SDT-203NB-50R1100N〜500N––●––––
SDT-203NB-50R220N〜500N––●–●––
SDT-203NB-50R34N〜500N––●–●–●

※1 The model symbol is put in □. Refer to [The combination of Load Range according to the model].
※2 Analog output and Printer output can be installed with option.
■Specifications of Load Range

Load Range Maximum Load DisplayMinimum Unit
2kN2000N1N
1kN1000.0N0.1N
500N500.0N
200N200.0N
100N100.00N0.01N
50N50.00N
20N20.00N
