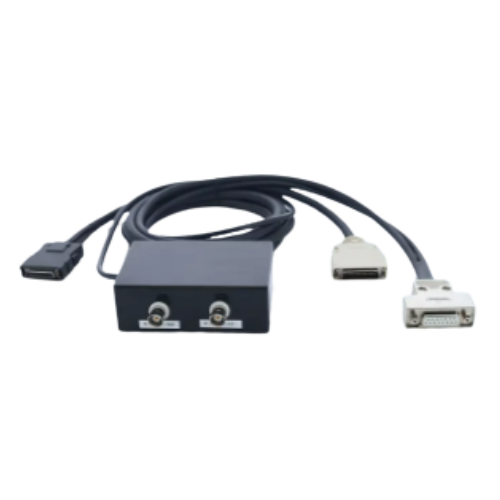

Force Control Cable with Signal Output Box

This is a custom-designed cable with a signal output box that branches from the connection between a force gauge, a motorized test stand, and a linear scale. It enables output of analog voltage signals along with Rec signals for measurement and recording purposes.

  • Force Control Cable with Signal Output Box

Features of Force Control Cable with Signal Output Box

  • Custom cable designed to send measurement signals to external devices during testing with a motorized test stand

  • When the test stand runs in cycle or automatic mode, the recording signal can be used as a trigger to start external software

  • Helps synchronize the recording start time across multiple measurement instruments, allowing accurate time-axis alignment during data analysis

  • For other signal output formats from the signal output box, please contact us for customization options
