Customized Cable

• Imada provides a comprehensive range of customized cables to optimize measurement processes.

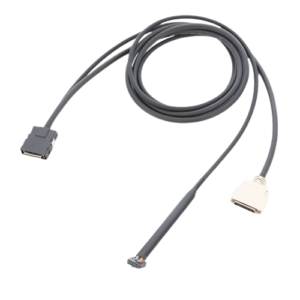

• The CB-528+308 cable enables the simultaneous connection of a force gauge to a test stand and a Mitutoyo Digimatic printer DP-1VA, thus streamlining data recording.

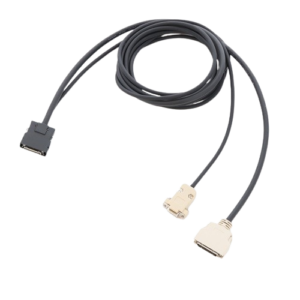

• On the other hand, the CB-528+208 cable facilitates versatile connectivity by linking a force gauge to both a test stand and PC concurrently, simplifying data management.

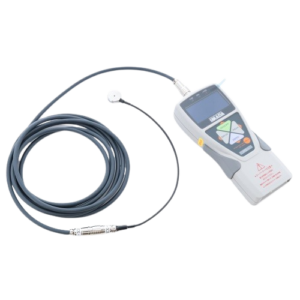

• Imada’s high-resistance cable ensures durability and stability even with frequent use and bending.
• Additionally, all cable specifications are customizable, providing a personalized solution to meet unique measurement requirements.
• With Imada’s tailored cable solutions, you can enhance your connectivity, durability, and flexibility in measurements.

Operating Point Detection Test for a Tactile Switch

https://youtu.be/66HvmyexlZ0?si=GXMzaW2c_bwQAm1j

Optimize the precision of your tactile switch testing with our Operating Point Detection Test. By employing a force-displacement analysis unit, we are able to measure the force required to switch the tact switch ON/OFF accurately. Our custom-made cable automates the process of recording force and displacement values at operating points, which are then plotted on a graph through included software, providing you with a streamlined and efficient testing process that delivers accurate results.

Inquiry number 3A5009A

Present the “inquiry number” below when you contact us, for prompt assistance.

Related sample

Tactile switch

Caution-

It’s essential to note that the suitability of samples for measurement may vary based on their materials or shapes when using this configuration. The product configuration depicted is for reference only and may differ depending on the sample, measurement method, and testing capacity. The products used in this video may differ from the example configuration. Please carefully choose the appropriate product model based on specifications to ensure compatibility in your testing processes.
