Attachments for 90 degree score bend test

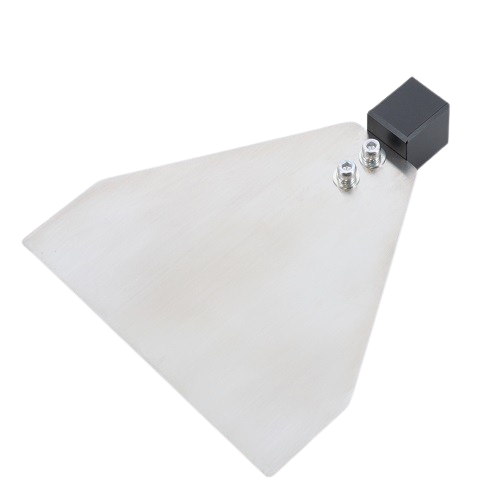

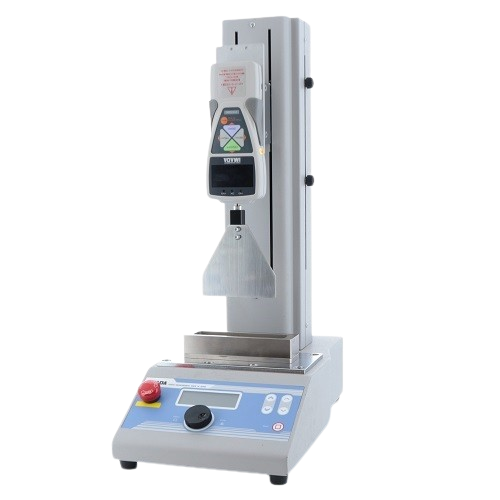

• The 90-Degree Score Bend Test attachments consist of two parts: an upper attachment for a force gauge and a lower attachment for a stand.
• These attachments are specifically designed to measure the compression force needed to bend corrugated cardboard precisely to a 90-degree angle at its score, adhering to Tappi T829-om15 standards, ensuring precision and alignment with industry standards.
• The attachments offer versatile testing capabilities and can accommodate various corrugated cardboard properties.
• A graphical analysis software feature is available as an add-on to provide in-depth insights into force values over time.
• For tailored testing solutions, kindly contact us to customize the attachments to your specific requirements, thereby improving your quality control processes.

Carton Score Quality Test

https://youtu.be/Z5N6u7DjNTA?si=7v5GiGw5sqoB_ifr

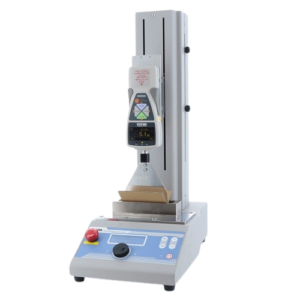

Maintaining optimal performance of box-making machines is critical to carton production. The Carton Score Quality Test, demonstrated in this video utilizing IMADA’s customized attachment and testing equipment, is an essential quality assessment tool. The test addresses variations in the force necessary to bend the carton score and crease at a 90-degree angle, preventing machine shutdowns and ensuring efficient carton production processes. The graphical software accompanying the testing equipment visually depicts the force transition, offering a comprehensive solution for effective management and quality control.

Inquiry number 3A5003A

Present the “inquiry number” below when you contact us, for prompt assistance.

Related sample

• Corrugated box
• Paper carton

Caution-

The images used for testing in the video demonstrate particular sample configurations, which may not be appropriate for measurement using this setup, depending on the sample’s shape or materials. The product configuration featured in the video is for guidance purposes only, and it’s subject to change depending on the measurement methodology, sample, and testing capacity. The products illustrated in the video may differ from the actual configuration. Therefore, it’s crucial to choose the appropriate product model compatible with your specific product configuration, referring to the specifications for guidance.
